Buy Huawei SUN-2000-4.6KTL-L1 Inverter from HYTECH
Why you should choose a SUN-2000-4.6KTL-L1
inverter from Huawei now.

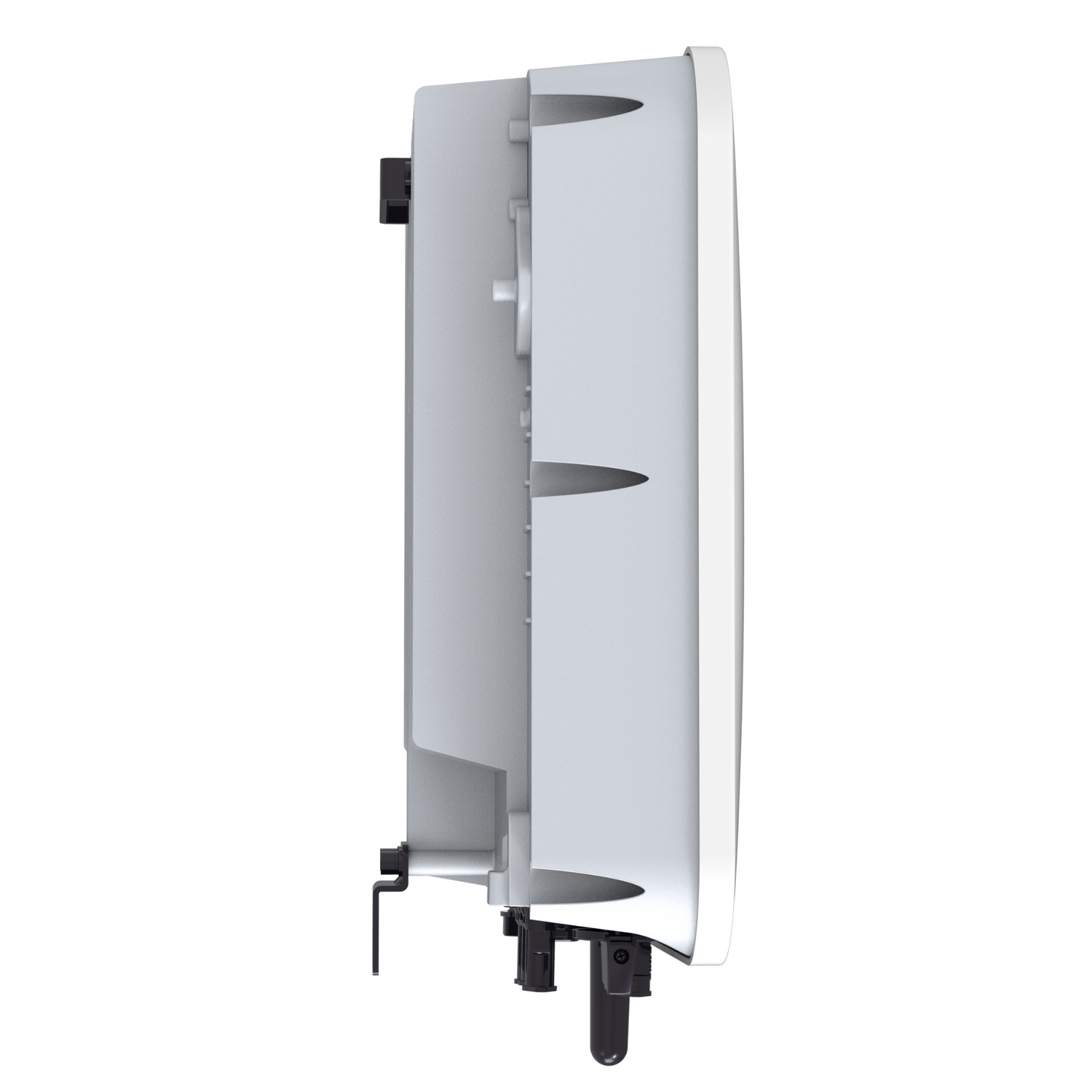

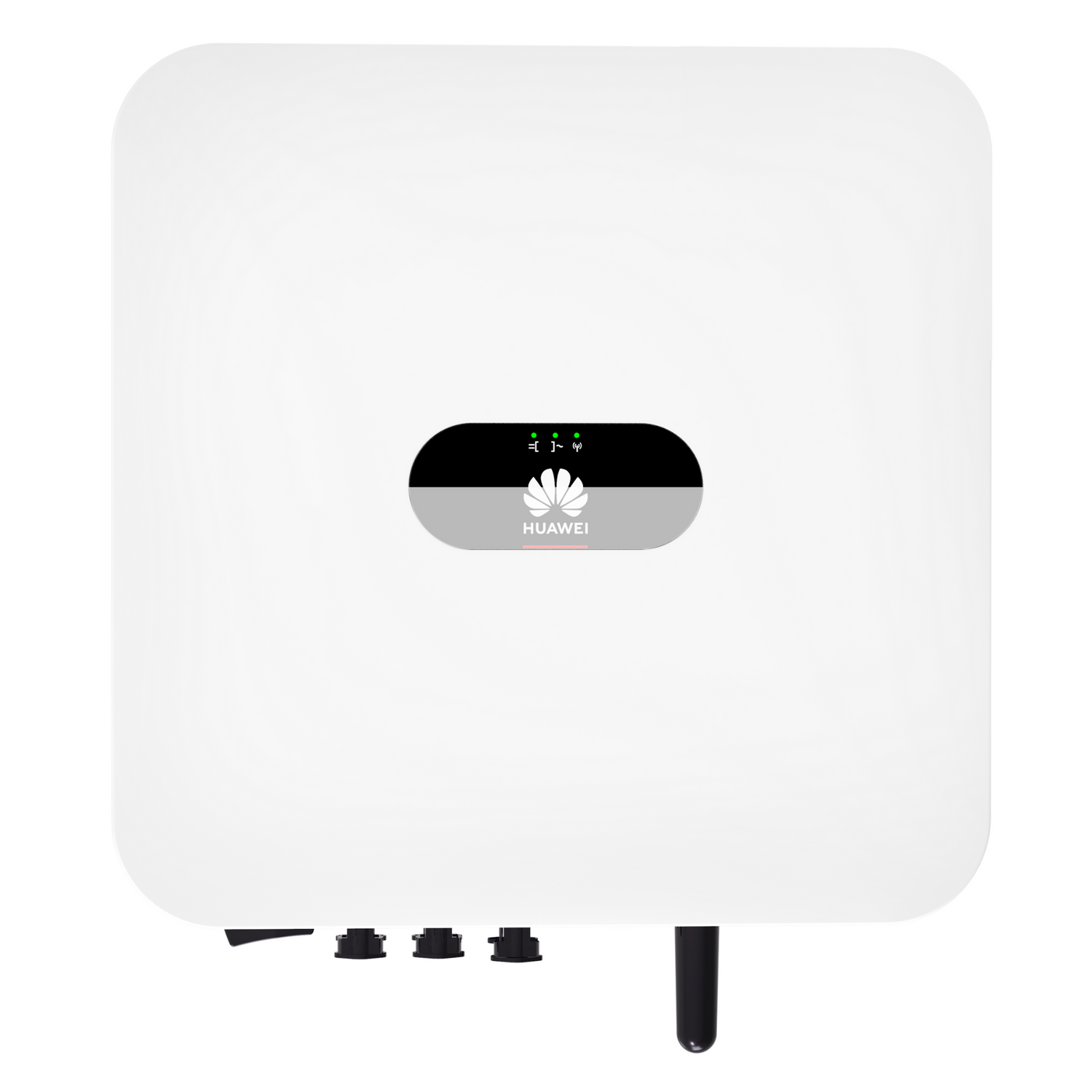

The Huawei SUN-2000-4.6KTL-L1 inverter makes electricity from your own PV system usable. The device converts direct current into alternating current, and thanks to its high efficiency, users benefit from increased efficiency. The dimensions of the Huawei SUN-2000-4.6KTL-L1 inverter are 365 x 365 x 156 mm, which means that the component is extremely compact. With a weight of 12 kg, it can also be assembled by a single person. The Huawei SUN-2000-4.6KTL-L1 inverter has a battery connection and supports RS485 communication for connection to a smart power meter or similar. The connection of a battery can be made either directly during the initial installation or subsequently, thanks to connection via Plug&Play, the effort is extremely low. In any case, integration into the system via the plug connections is extremely simple. With the help of the app, commissioning is no problem within a few minutes.
The advantages of the Huawei SUN-2000-4.6KTL-L1 inverter are manifold and do not only extend to the battery connection, an overvoltage protection (type 2 for AC and DC) is also already integrated. In addition, the component has two independent MPP trackers, the operating noise is pleasantly quiet thanks to convective air cooling. The nominal power of the Huawei SUN-2000-4.6KTL-L1 inverter is specified at 4,600 watts, the voltage range extends from 90 to 560 volts. In operation, the inverter reaches a maximum efficiency of 98.4%,so it is suitable for efficient operation of the system. The European efficiency is 97.7 %.
- 1-phase inverter with 5,000VA output
- 2 independent MPP trackers
- 1 battery connection (plug & play)
- Efficiency up to 98.4%
- Communication via WLAN, Ethernet* and 4G*
- RS485 for Smart Power Sensor & Battery
- AC and DC overvoltage protection
Higher yield
Max. Efficiency 98.4%
Future-proof
Plug & Play battery interface
Simple and easy
Optimized AC connection
Safe and reliable
DC & AC surge protection
Huawei SUN2000-4.6KTL-L1 - Technical Specifications
All the latest facts and figures
summarized compactly for you.
Huawei SUN2000-4.6KTL-L1 General Specifications
Operating temperature range: -25 ~ +60 °C
Operating relative humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2,000 m)
Cooling: Natural convection
Display: Status LED's
Communication: RS485, WLAN, Ethernet*, 4G/3G/2G*
Weight (incl. mounting bracket): 12 Kg
Dimensions (incl. mounting bracket): 365 x 365 x 156 mm
Protection class: IP65
Huawei SUN2000-4.6KTL-L1 - Input DC
Recommended maximum PV power1: 6,900 Wp
Max. Input voltage2: 600 V
Starting voltage : 100 V
Full MPPT voltage range2: 90 V ~ 560 V (1)
Rated input voltage : 360 V
Max. Input current per MPPT: 12.5 A
Max. Short circuit current: 18 A
Number of MPP trackers: 2
Max. Number of inputs: 2
Huawei SUN2000-4.6KTL-L1 - Output AC
Mains connection: Single-phase
Rated power: 4,600 W
Max. Apparent power5: 5.000 VA
Rated output voltage: 220 V / 230 V / 240 V
AC - mains frequency: 50 Hz / 60 Hz
Max. Output current6: 23 A
Adjustable power factor : 0.8 cap. ... 0.8 ind.
Distortion factor (THD): ≤ 3%
Huawei SUN2000-4.6KTL-L1 - Efficiency
Max. Efficiency: 98.4 %
European efficiency: 97.8 %
Huawei SUN2000-4.6KTL-L1 - Protective devices
DC load break switch: Yes
DC reverse polarity protection: Yes
AC overcurrent protection: Yes
AC short circuit protection: Yes
Overheat protection: Yes
Arc fault protection: Yes
DC overvoltage protection4: Yes
AC overvoltage protection4: Yes
DC insulation monitoring : Yes
Fault current monitoring : Yes
Huawei SUN2000-4.6KTL-L1 - Battery Compatibility
Compatible battery: LG Chem RESU 7H_R / 10H_R
Voltage range: 350 ~ 450 Vdc
Max. Current: 10 A
Max. Discharge power: 4,600 W
Compatible battery: HUAWEI Smart ESS battery 5 kWh - 30 kWh 1
Operating voltage range: 350 ~ 560 VDC
Max. Operating current: 15 A
Max. Charging power3: 5.000 W
Max. Discharge power: 4,600 W
Huawei SUN2000-4.6KTL-L1 - Standards and Security
EN/IEC 62109-1, EN/IEC 62109-2
Huawei SUN2000-4.6KTL-L1 - Power supply conditions
G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727,
IEC62116
Further information on conformity to standards is available on request.
Huawei SUN2000-4.6KTL-L1 - Optimizer Compatibility
DC MBUS compatible optimizer: SUN2000-450W-P, SUN2000-600W-P
Huawei SUN2000-4.6KTL-L1 - included in delivery
PV Connectors
Battery Connectors
AC connectors
Signal cable connector
Antenna
Bracket
Huawei SUN2000-4.6KTL-L1 - Notes and explanations
1 The maximum PV input power of the inverter is 10000 Wp when long strings are designed and fully connected to the SUN2000-450W-P power optimizers.
2 The maximum upper limit for input voltage and operating voltage is reduced to 495 V when the inverter is connected and working with the LG battery .
3 2500 W @ 5kWh HUAWEI ESS Battery
4 compatible with protection type TYPE II according to EN / IEC 61643-11
5 VDE-AR-N 4105: 4,600VA / AS4777.2: 4,999VA.
6 AS4777.2: 21.7A.
* via WLAN-FE dongle / 4G dongle (optional)
