HUAWEI SUN2000-17KTL-M5

Loghează-te pentru a vizualiza prețuri 8.028,91 lei


Livrare

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

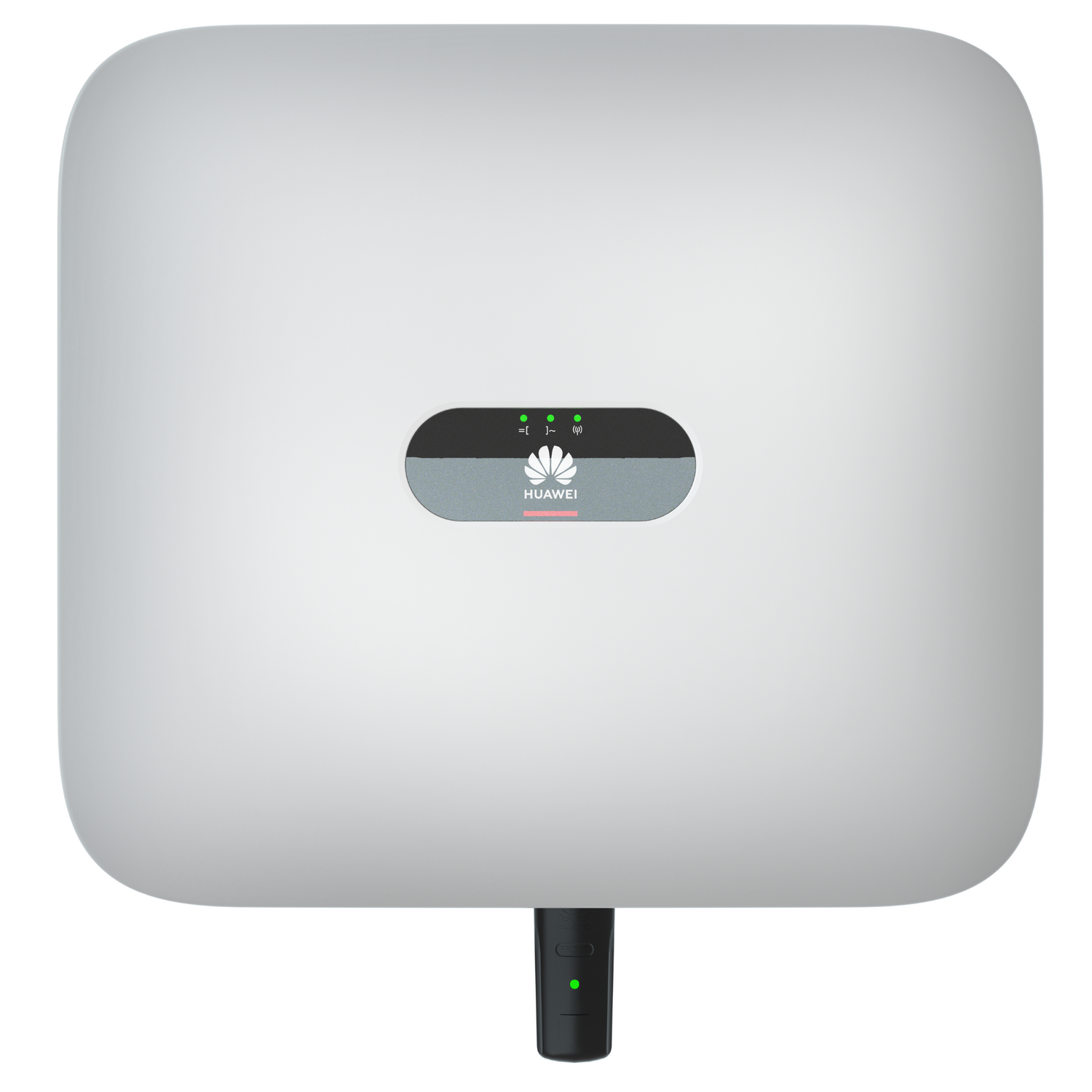

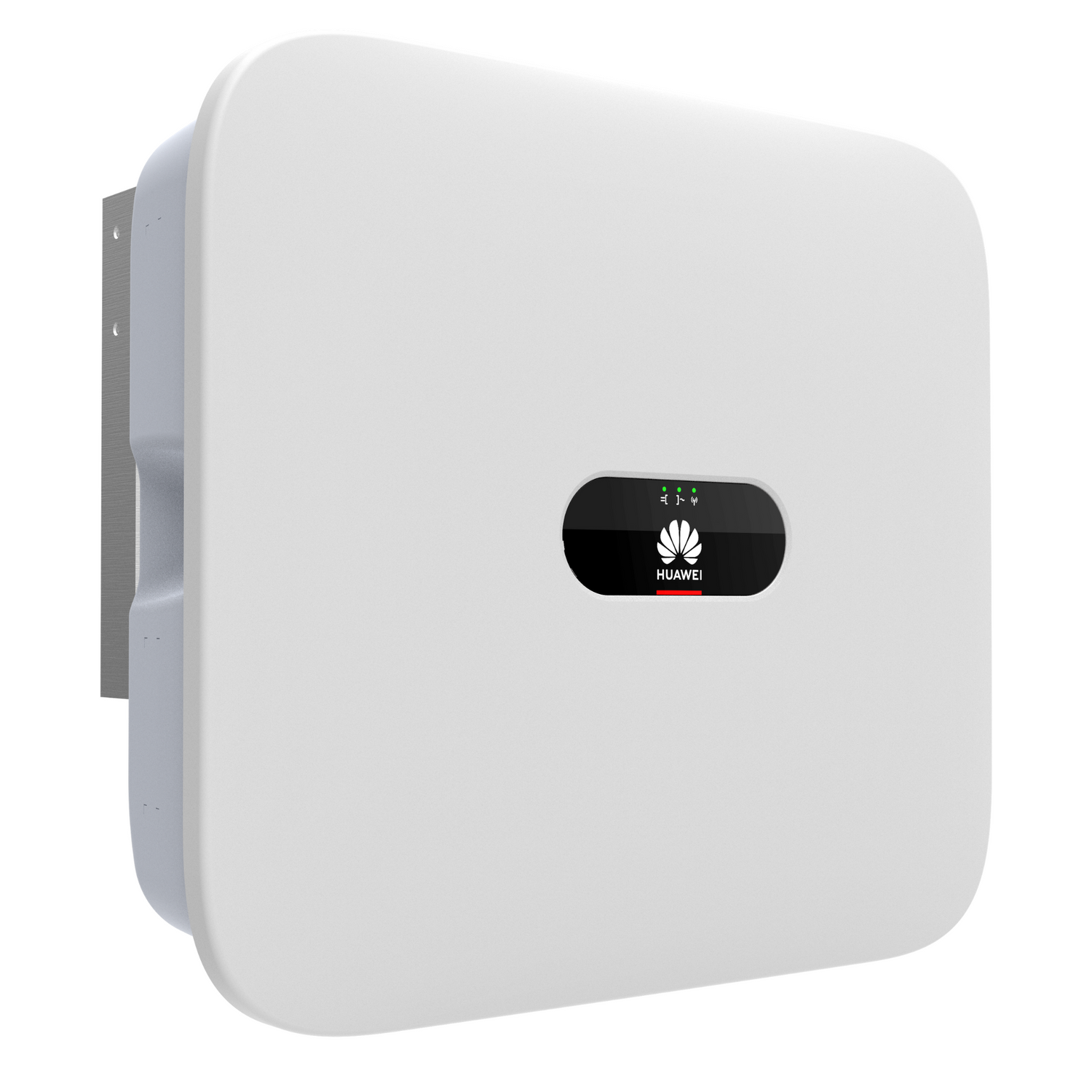

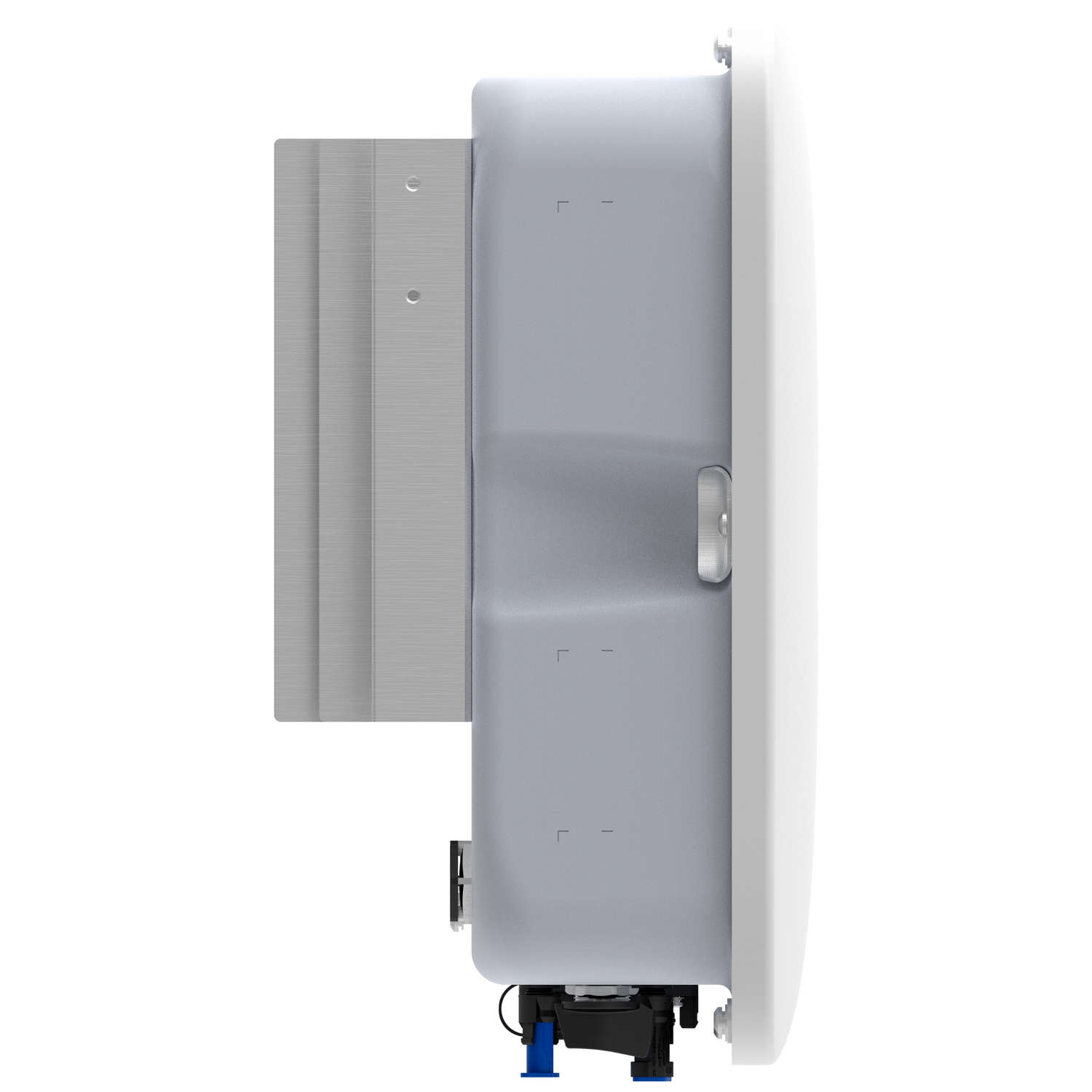

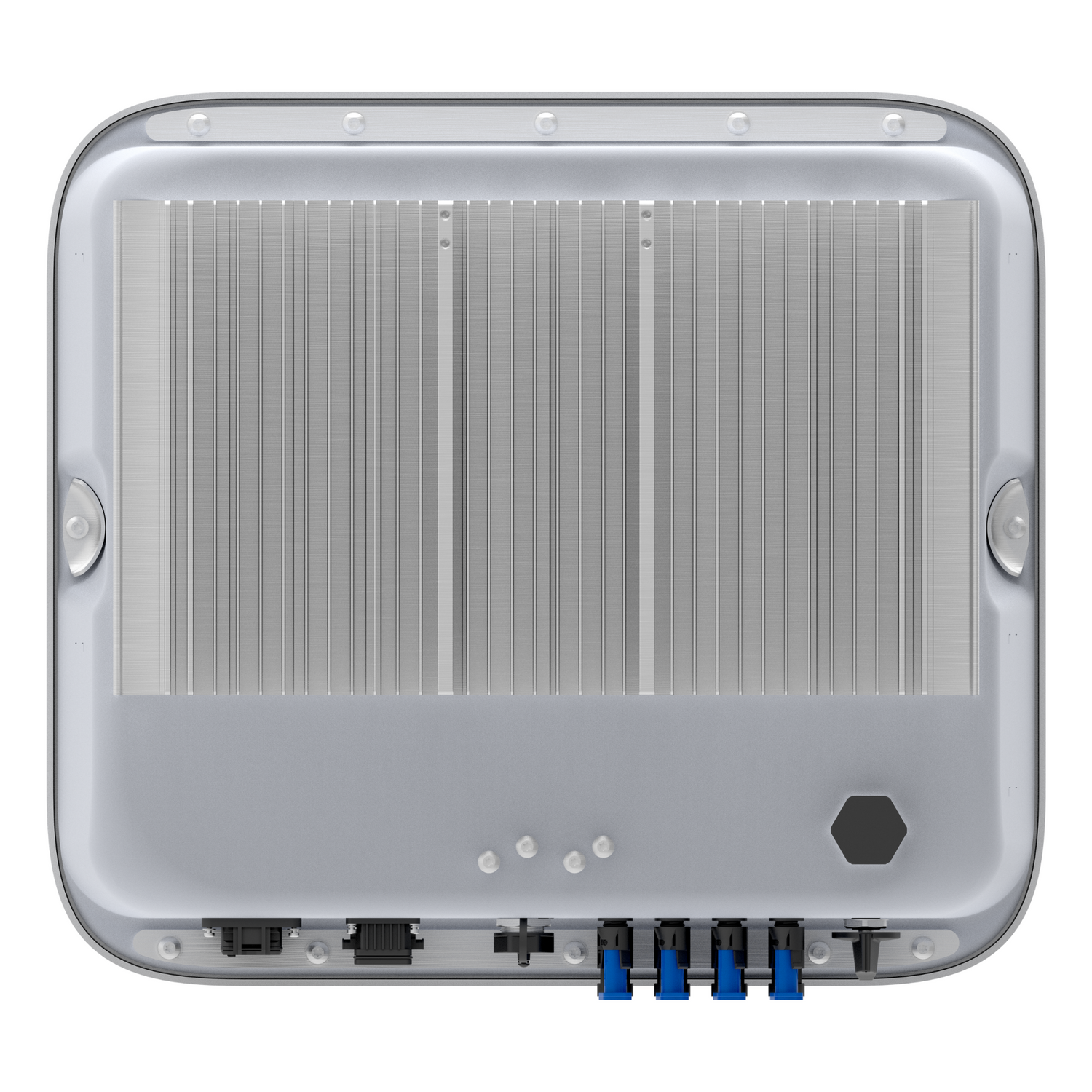

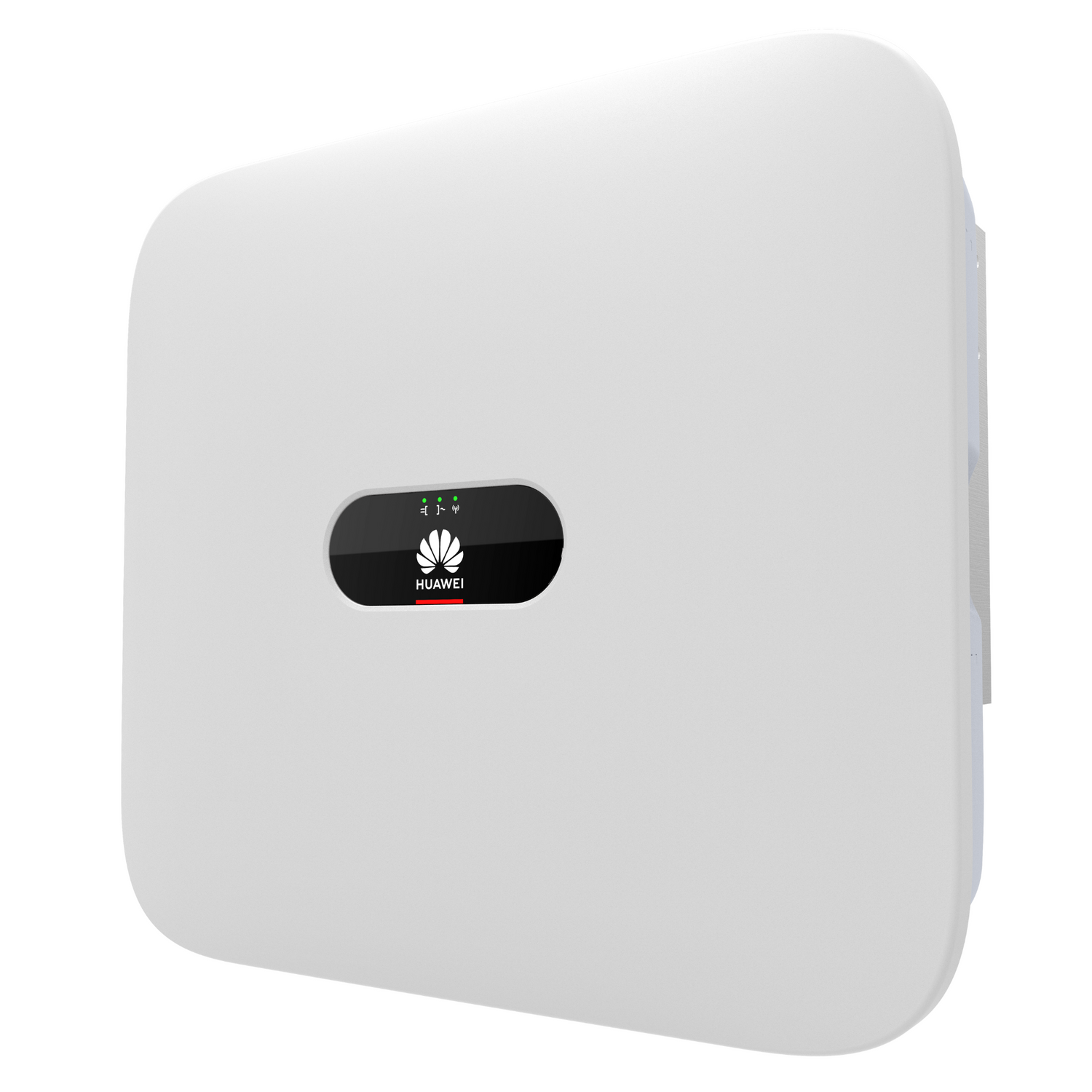

HUAWEI SUN2000-17KTL-M5 Inverter buy at HYTECH

Why you should choose a HUAWEI SUN2000-17KTL-M5 inverter from Huawei now.

The HUAWEI SUN2000-17KTL-M5 inverter converts the direct current of the solar modules into standard household alternating current. This makes it an indispensable component - with its high efficiency, it ensures optimum efficiency of the entire system. The dimensions of the HUAWEI SUN2000-17KTL-M5 inverter are 546 x 460 x 228 mm, which makes the device convincing with its compact design. The weight of 21 kg is also pleasantly low for a component of this type - installation can be carried out by two people or even alone. Integration is effortless with the plug-in connections. The component has RS485 communication for data exchange with the smart power meter. Commissioning is greatly simplified by the Huawei FusionSolar app, so that it is successfully completed in just a few minutes.

The advantages of the HUAWEI SUN2000-17KTL-M5 inverter are many. The inverter is also equipped with overvoltage protection (type 2 for AC and DC), as well as two independent MPP trackers. Also positive is the pleasantly quiet operating noise. The HUAWEI SUN2000-17KTL-M5 inverter has a rated power of 18,700 VA, and the voltage range extends from 200 to 1,000 volts. The maximum efficiency of 98.4% is very high, which allows the entire system to operate extremely efficiently. The European efficiency is specified at 98.1 %.

R

Active safety

AI arc protection for safe operation

R

Flexible communication

WLAN, Fast Ethernet, 4G
Supported communication

R

Higher returns

Up to 30% more energy with Optimizer

  • 3-phase inverter with 18.700VA power
  • 2 independent MPP trackers

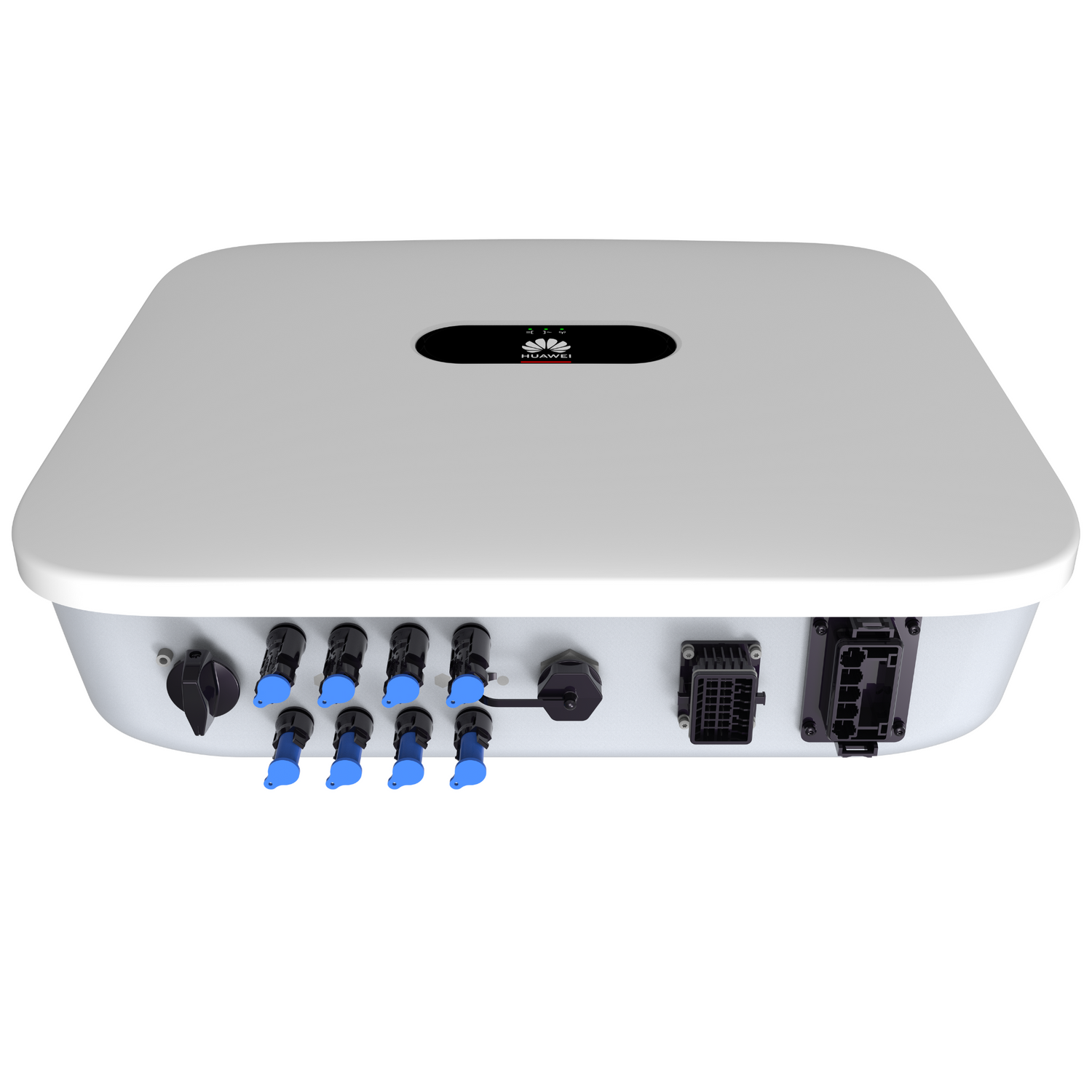

  • 4 DC connections
  • Efficiency up to 98.4%
  • Communication via WLAN / Ethernet & 2G/3G/4G**
  • Integrated PID recovery
  • AFCI arc detection integrated
  • Smart Air Cooling
  • Protection class IP66
  • Installation via FusionSolarApp
  • Free system monitoring with FusionSolar
  • RS485 for Smart Power Sensor and Smartlogger
  • Connection for ripple control receiver
  • DC MBUS communication for Smart Optimizer*
  • Integrated AC and DC overvoltage protection TYPE II

HUAWEI SUN2000-17KTL-M5 High Current Version - Technical Specifications

All facts and figures summarised for you in a current and compact form.

HUAWEI SUN2000-17KTL-M5 - General Data

Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2.000 m)
Cooling: Smart Air Cooling
Display: LED indicators; integrated WLAN + FusionSolar App
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket): 21 Kg
Dimensions (incl. mounting bracket): 546 x 460 x 228 mm
Protection class: IP66
PID consumption: 5W

HUAWEI SUN2000-17KTL-M5 - Input DC

Recommended maximum PV power1: 25,500 Wp
Max. Input voltage2: 1,100 V
Operating voltage range3: 200 V ~ 1000 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. Input current per MPPT: 30 A (two string) / 20 A (single string)
Max. Short circuit current: 40 A
Number of MPP trackers: 2
Max. Number of inputs per MPPT: 4

HUAWEI SUN2000-17KTL-M5 - Output AC

Mains connection: three-phase
Rated power: 17,000 W
Maximum apparent power: 18,700 VA
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239.6 Vac / 415Vac, 3W + N + PE
AC - Line frequency: 50 Hz / 60 Hz
Maximum output current: 28.6A/380Vac, 27.1A/400Vac, 26.1A/415Vac
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%.

HUAWEI SUN2000-17KTL-M5 - Efficiency

Max. Efficiency: 98.4 %
European efficiency: 98.1 %

HUAWEI SUN2000-17KTL-M5 - Protection devices

DC load break switch: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
DC reverse polarity protection: Yes
AC overvoltage protection: CLASS II
DC overvoltage protection: TYPE II
Fault current monitoring: Yes
Arc detection: Yes
Inputs ripple control receiver: Yes
Integrated PID recovery4: Yes

HUAWEI SUN2000-17KTL-M5 - Module Optimizer

SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, SUN2000-1300W-P, SUN2000-1100W-P

HUAWEI SUN2000-17KTL-M5 - Standards and Safety

EN/IEC 62109-1, EN/IEC 62109-2

HUAWEI SUN2000-17KTL-M5 - Power supply conditions

G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002,
RD 244, TOR D4, IEC61727, IEC62116

Further information on conformity to standards is available on request.

HUAWEI SUN2000-17KTL-M5 - included in the scope of delivery

PV Connector
AC Connector
Signal Cable Connector
Bracket

HUAWEI SUN2000-17KTL-M5 - Notes and explanations

1 The maximum PV input power of the inverter is 40,000 Wp when long strings are designed and fully connected with SUN2000-450W-P current optimizers.

2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.

3 Any DC input voltage above the operating voltage range may cause faulty operation.

4 HUAWEI SUN2000-17KTL-M5 increases the potential between PV and ground to above zero by built-in PID recovery function to recover the degradation of module from PID. Supported module types are: P-type (mono, poly)
