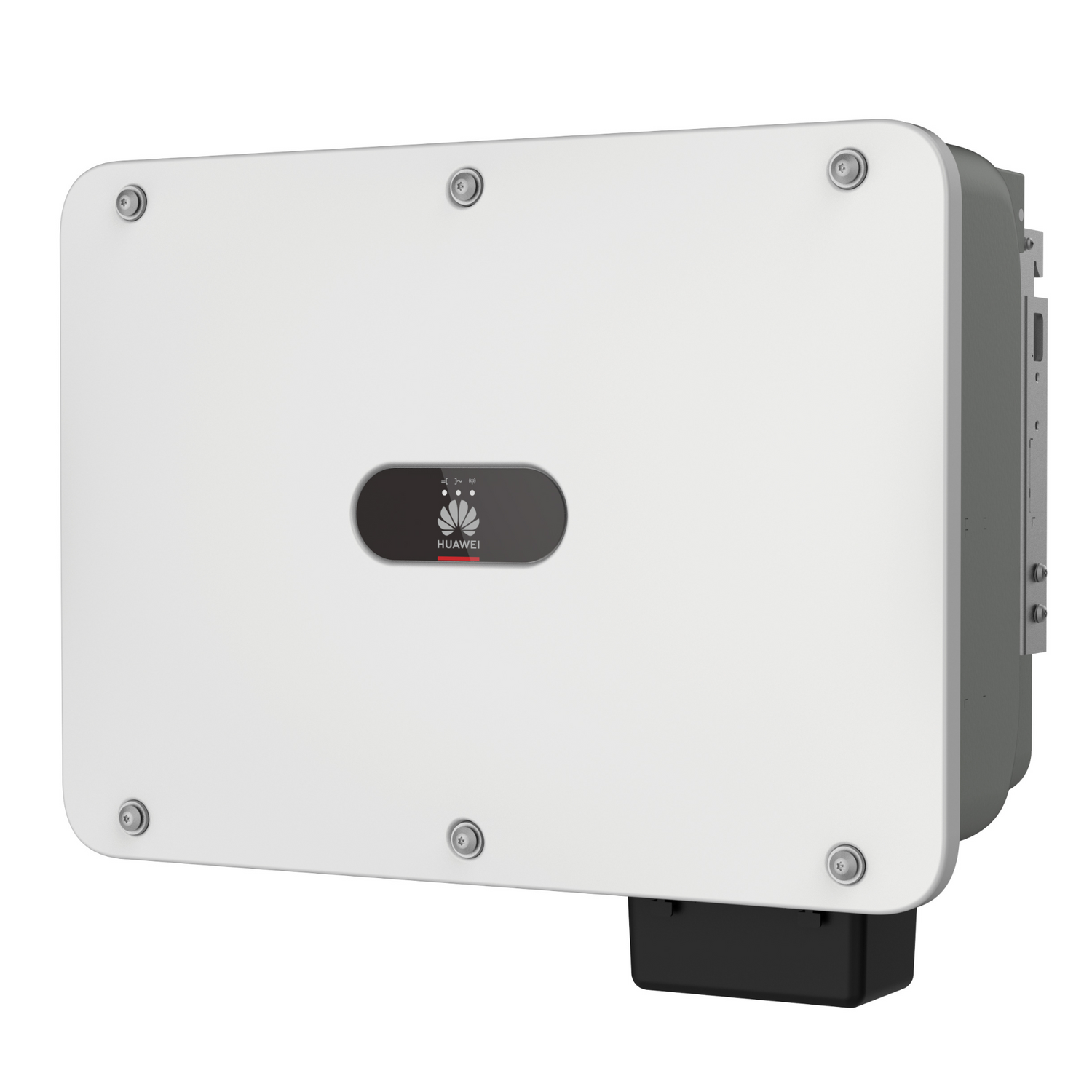

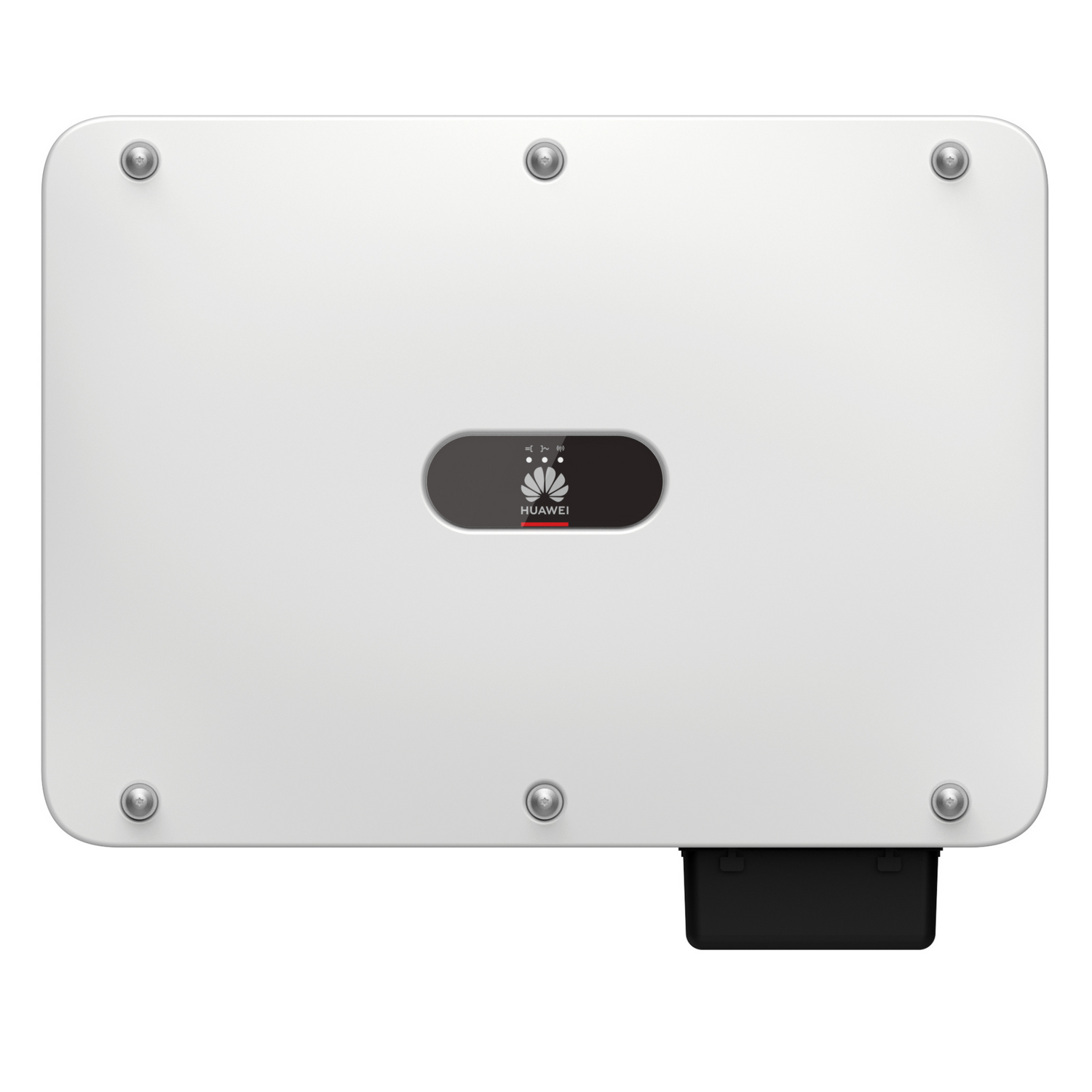

Buy Huawei SUN2000-50KTL-M3 Inverter at HYTECH
Why you should choose a Huawei SUN2000-50KTL-M3
inverter from Huawei now.
The Huawei SUN2000-50KTL-M3 combines efficiency with ease of use. As an indispensable component of the PV system, the inverter is designed to convert direct current from the solar cells into alternating current. In this form, it can be used or fed into the grid.
- 3-phase inverter with 55,000VA power
- 4 independent MPP trackers
- Efficiency up to 98.5%
- Compatible with module optimizer MERC-1100W-P, MERC-1300W-P
- Communication via 2G, 3G, 4G, Ethernet (with optional dongle), RS485, AC & DC-MBUS
- Free system monitoring with FusionSolar
- RS485 for Smart Power Sensor & SmartLogger
- Integrated AC and DC overvoltage protection TYPE II
- Integrated PID recovery
- intelligent air cooling
- Protection class IP66
Higher yield
Max. Efficiency 98.5%
Simple and easy
only 49 kg
Safe and reliable
Arc detection
Huawei SUN2000-50KTL-M3 - Technical Specifications
All facts and figures are summarised for you in a compact and up-to-date form at.
Huawei SUN2000-50KTL-M3 - General Data
Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshöhe: 0 – 4.000 m (Leistungsminderung > 2.000 m)
Kühlung: intelligente Luftkühlung
Anzeige: LED – Anzeige, Bluetooth + APP
Kommunikation: RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Gewicht (inkl. Befestigungswinkel): 49 kg
Abmessungen (inkl. Befestigungswinkel): 640 x 530 x 270 mm
Schutzart: IP66
Energieverbrauch nachts: < 5,5 W
Huawei SUN2000-50KTL-M3 - Input (DC)
Max. Input voltage1: 1,100 V
Operating voltage range2: 200 V ~ 1,000 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. Input current per MPPT: 30 A
Max. Short-circuit current: 40 A

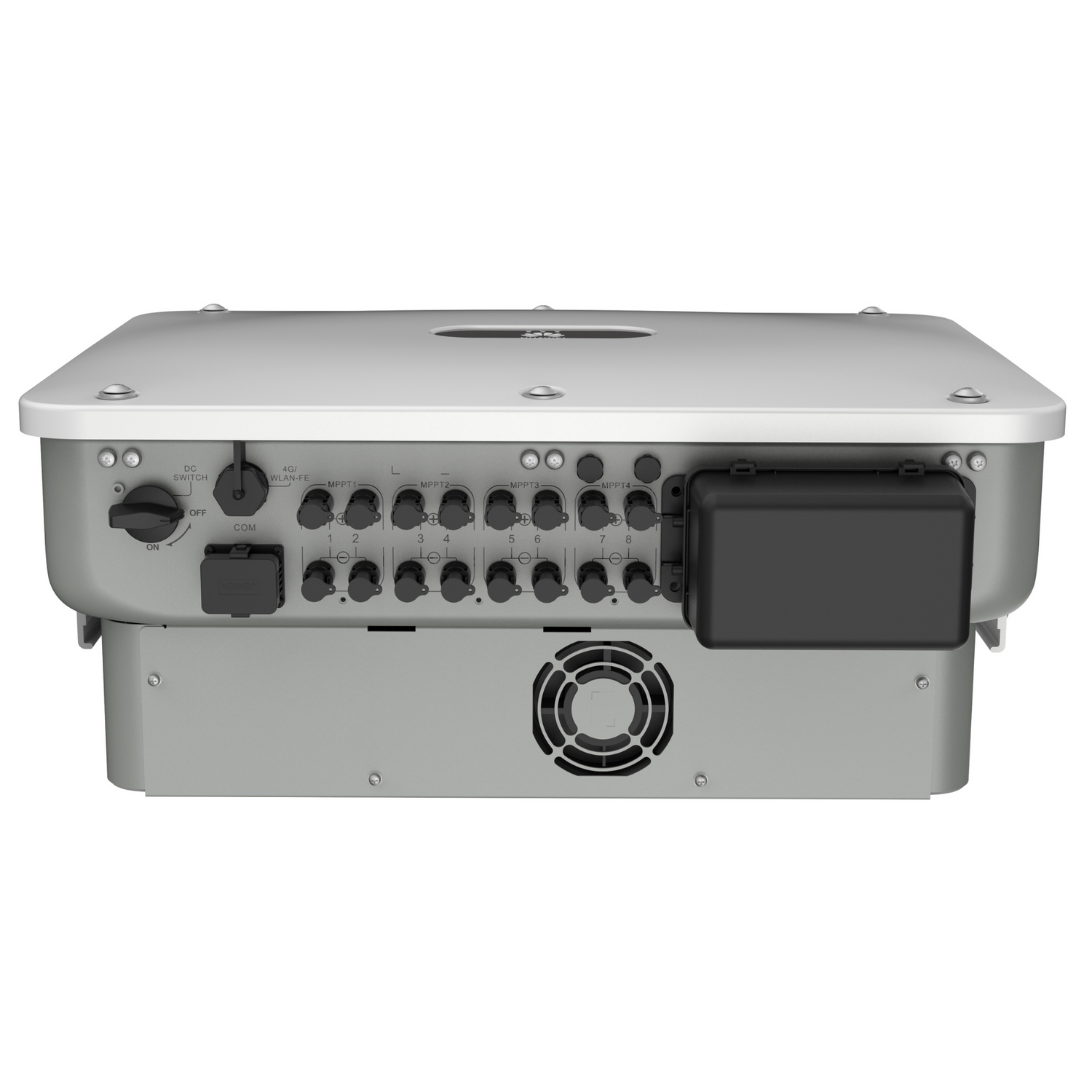

Number of MPP trackers: 4
Max. Number of inputs: 8
Huawei SUN2000-50KTL-M3 - protection and function
DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Fault current monitoring: Yes
AC overcurrent protection: Yes
DC insulation resistance detection: Yes
Arc detection: Yes
Ripple control receiver inputs: Yes
Integrated PID recovery.3: Yes
Huawei SUN2000-50KTL-M3 - Module Optimizer
DC MBUS compatible optimizer: MERC-1100W-P, MERC-1300W-P
Huawei SUN2000-50KTL-M3 - Standards Compliance (others available on request)
Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, EN 50503, IEC 62116, IEC 60068, IEC 61683
Mains connection standards: IEC61727, VDE-AR-N-4105, VDE 4110, VDE 0126-1-1, BDEW, G59/3, UTE C15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, DEWA
Huawei SUN2000-50KTL-M3 - Notes and explanations
1 The maximum input voltage is the upper limit of the DC voltage. A higher input DC voltage would probably damage the inverter.
2 Any DC input voltage outside the operating voltage range may cause the inverter to operate incorrectly.
3 SUN2000-30~50KTL-M3 raises the potential between PV and ground to above zero by the built-in PID recovery function to resolve module degradation by PID. Supported module types are: P-type (mono, poly), N-type (nPERT, HIT).
