Buy Huawei SmartLogger 3000A01EU from HYTECH
Why you should choose a SmartLogger 3000A01EU
from Huawei now.

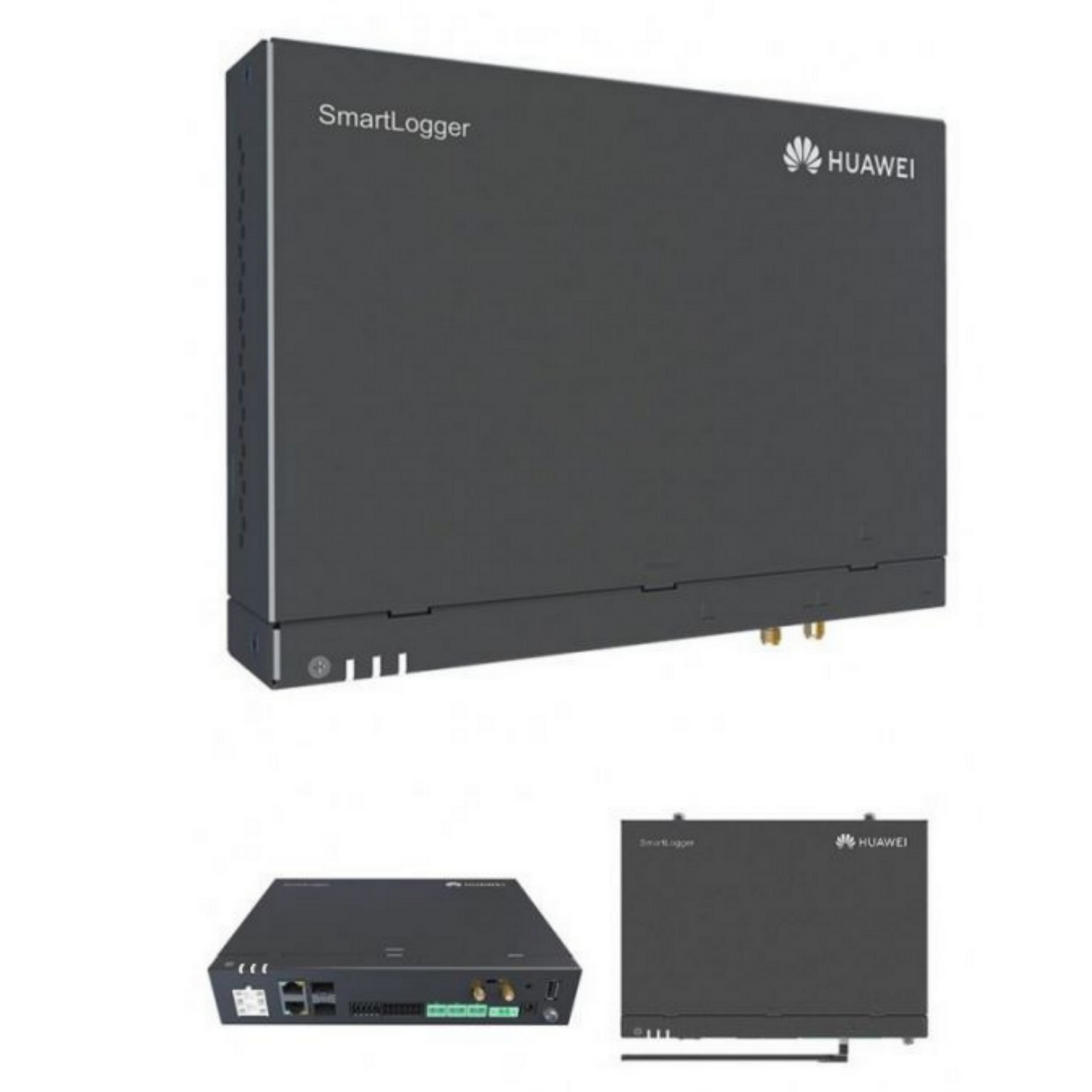

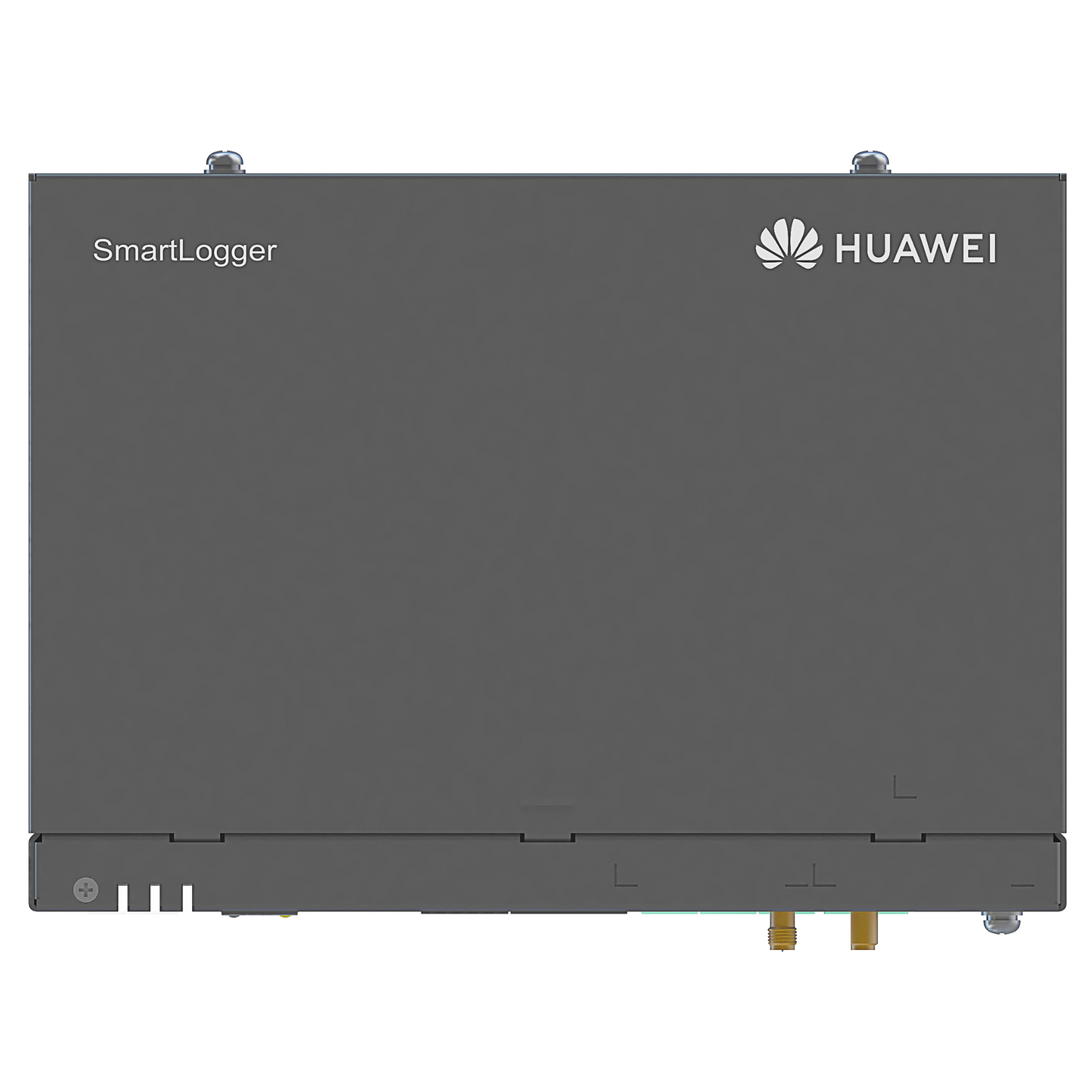

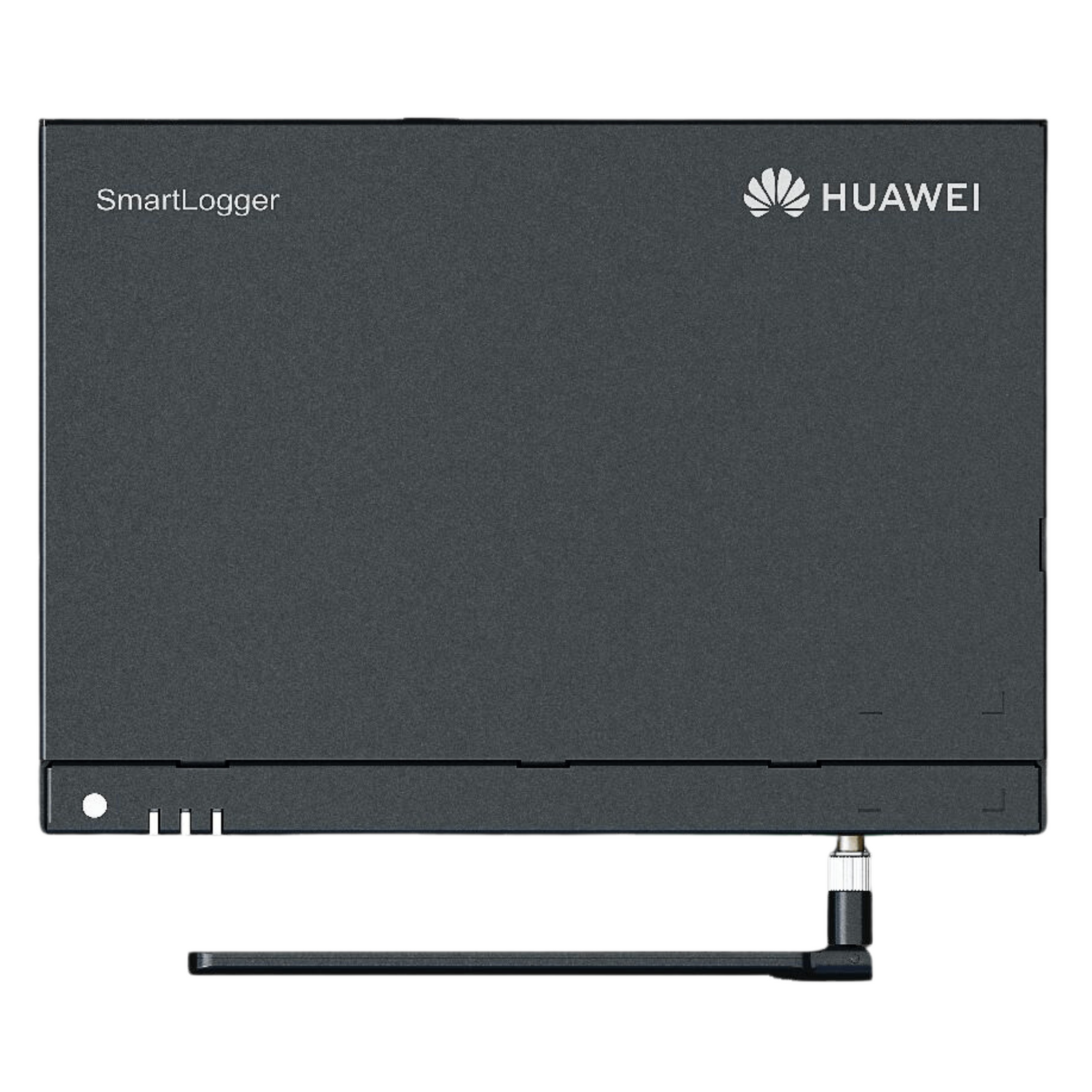

The Huawei SmartLogger 3000A01EU allows to manage a maximum of 80 devices. The installation and operation of the data logger for solar systems work very straightforward. Various options are possible for the integration of the Huawei SmartLogger 3000A01EU. The device supports communication via RS485 as well as via Ethernet and 4G. Interesting for all operators is the integrated web server, which makes the logger an essential part of a smart PV system.
On-site installation is simple and safe. It can be done either via the Huawei Solar Fusion app (via Wi-Fi) or a notebook - in any case, commissioning is completed quickly. Immediately after setup, users have access to numerous intelligent control options to increase efficiency and use electricity wisely. Particularly practical: The LED display on the housing shows the current status. The device is protected against weather and environmental influences on site according to IP20. It can be operated in a range from -40 °C to +60 °C - in other words, in just about any system. The dimensions of 225 x 160 x 44 mm are compact, so that no space problems arise. The entire device weighs 2 kg. Most of the accessories for mounting are included in the scope of delivery, for example the 4G antenna and the power adapter. The typical power consumption is 8 W, 15 W is not exceeded.
- Max. 80 manageable devices
- Installation via FusionSolarApp or notebook
- Integrated web server
- Communication via RS485, Ethernet and 4G
Secure
Easy to install on site
Smart
Intelligent control options
Reliable
Integrated overvoltage protection
Huawei SmartLogger 3000A01EU - Technical Specifications
All facts and figures are summarised for you in a compact and up-to-date form at.
Huawei SmartLogger 3000A01EU - General Data
Operating temperature range: -40 ~ +60 °C
Relative humidity: 5 % RH~ 95 % RH
Operating altitude: max. 4,000 m
Power consumption: Typically 8 W, Max. 15 W
Display: 3 x LED's
Communication: RS485, Ethernet, 2G/3G/4G
Weight: 2 Kg
Dimensions (without mounting brackets and antenna) :
225 x 160 x 44 mm
Protection class: IP20
Huawei SmartLogger 3000A01EU - Communication Interfaces
WAN: 1 x WAN 10 / 100 / 1,000 Mbps
LAN: 1 x LAN 10 / 100 / 1.000 Mbps
RS485: 3 x COM 1200 / 2400 / 4800 / 9600 / 19200 / 115200 bps, 1000 m
LTE(FDD)：B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS： 850/900/1900/2100 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz 2
Digital / Analog Input / Output: 4 x DI, 2 x DO, 4 x AI
Active DO: 12V, 100mA (connection with relay, sensor).
Huawei SmartLogger 3000A01EU - Communication Protocol
Ethernet: Modbus TCP, IEC 60870-5-104
RS485: Modbus RTU, IEC 60870-5-103 (standard), DL / T645
Huawei SmartLogger 3000A01EU - Device Management
Max. Number of manageable devices: 80
Huawei SmartLogger 3000A01EU - Interaction
Display: LEDs
WEB: Integrated web server
USB: 1 x USB 2.0
APP: Communication via WLAN for commissioning
Huawei SmartLogger 3000A01EU - Power supply
Power supply AC: 100 V～240 V, 50 Hz / 60 Hz
Power supply DC: 12 V / 24 V
Power consumption: Typically 8 W, Max. 15 W
Huawei SmartLogger 3000A01EU - included in delivery
Mains cable 230V
Mains adapter 12VDC + holder
Patch cable
4G antenna
Connector for DI/AI/DO contacts
Connector for RS485
