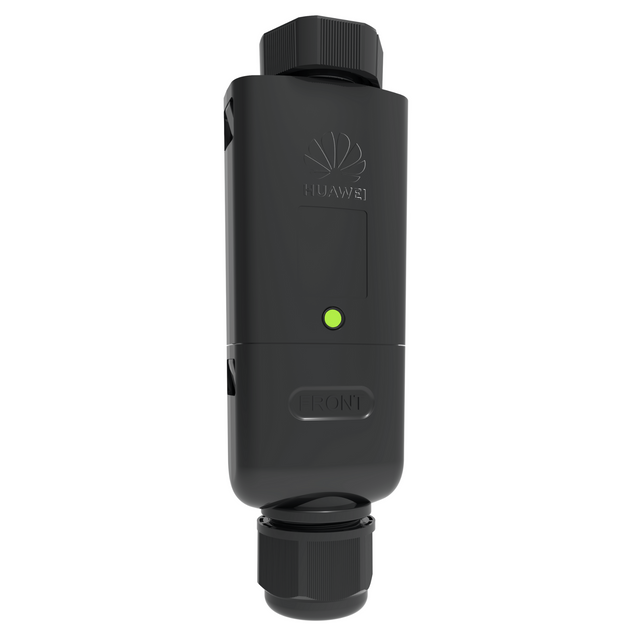

HUAWEI Smart DongleA-05 WLAN-FE
HUAWEI Smart DongleA-05 WLAN-FE este în așteptare și va fi expediat de îndată ce este din nou în stoc.
Nu s-a putut încărca disponibilitatea ridicării
Livrare
Livrare
Add some general information about your delivery and shipping policies.
HUAWEI Smart DongleA-05 WLAN-FE
Descriere
Descriere
Buy Huawei Smart DongleA-05 WLAN-FE from HYTECH
Why you should choose a Smart Dongle A-05 WLAN-FE
from Huawei now.
The Huawei Smart DongleA-05 WLAN-FE supports the smooth wireless communication of the inverters. To do this, the module is simply connected via USB (Plug&Play) and then establishes a WLAN or Ethernet connection. Up to 10 devices can be networked in this way. The data transmission of the Huawei Smart Dongle A-05 WLAN-FE is carried out according to the 802.11b/g/n standard on a frequency of 2.412GHz to 2.484GHz. Communication with third-party management systems is also possible, provided that they comply with the communication protocol of the Huawei Smart Dongle.
Commissioning the WLAN module is quick and easy. The LED indicator shows the current status of the module and helps with the setup. Once connected, the dongle is hardly noticeable. With dimensions of 146 x 48 x 33 mm and a total weight of only 90 g, the technology remains in the background and does its job reliably. The Smart Dongle A-05 WLAN-FE can be used in almost any environment, thanks in part to its IP65 protection rating. The tolerance ranges for temperature and humidity are specified as -30°C to +65°C and 5% to 95% respectively. The typical power consumption of 2.5 watts is even lower than that of the 4G dongle. Before buying, check the compatibility with the inverter, the Smart Dongle A-05 WLAN-FE works with numerous models of the SUN2000 series. For maximum security, the wireless connection is encrypted according to WPA/WPA2 or TKIP/CCMP/AES.
- Max. 10 supported devices
- Connection interface USB
- Plug-and-play installation
- Display LED - Indicator
Simply
Plug & Play
Supports up to 10 devices
Reliable
Protection class IP65
Smart
WLAN & Fast Ethernet communication
Compatible with third-party management systems1
Huawei Smart DongleA-05 WLAN-FE - Technical Specifications
All facts and figures are summarised for you in a compact and up-to-date form at.
Huawei Smart DongleA-05 WLAN-FE - General Data
Max. supported devices: 10
Connection interface: USB
Ethernet interface: 10/100M Ethernet
Installation: Plug-and-play
Display: LED - indicator
Dimensions (W x H x D): 146 x 48 x 33 mm
Weight: 90 g
Protection class: IP65
Power consumption (typical): 2.5 W
Operating mode: STA
Encryption: WPA/WPA2, TKIP/CCMP/AES
Huawei Smart DongleA-05 WLAN-FE - WLAN Parameters
Supported standards and frequencies: 802.11b/g/n（2.412GHz-2.484GHz）.
Huawei Smart DongleA-05 WLAN-FE - Environment
Operating temperature range: -30 ℃ to +65 ℃
Relative humidity in operation: 5 - 95% RH
Storage temperature range: -40℃ to +70℃
Max. Operating altitude: 4000 m
Huawei Smart DongleA-05 WLAN-FE - Standards Compliance
Certificates: SRRC, CE, RCM
Huawei Smart DongleA-05 WLAN-FE - Inverter Compatibility
Wechselrichtermodell:
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
SUN2000-3/4/5/6/8/10KTL-M0/M1
SUN2000-12/15/17/20KTL-M0/M2
SUN2000-30/36/40/50KTL-M3
Huawei Smart DongleA-05 WLAN-FE - Notes and explanations
1 The third-party management system must match the communication protocol from the Huawei Smart Dongle.
