Buy Huawei Smart DongleA-03 4G at HYTECH
Why you should choose the Smart DongleA-03 4G
from Huawei now.

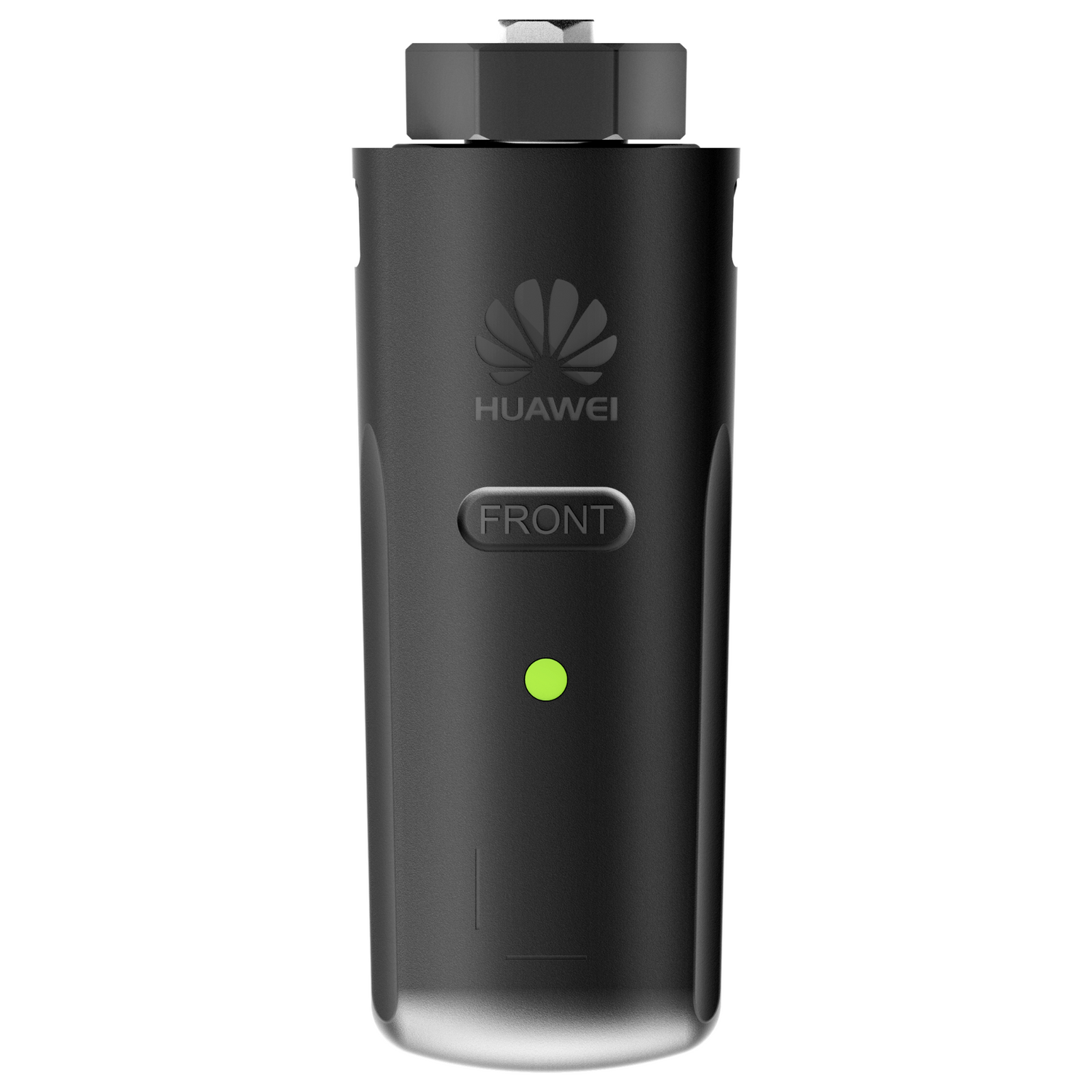

Plug in, connect, done - the Huawei Smart DongleA-03 4G is installed very quickly via Plug&Play. The connection is made via USB, which is also a particularly simple solution. The dongle enables the connection of the inverter to the Huawei FusionSolar Smart PV Management System. In total, the Huawei dongle supports the connection of a maximum of 10 devices. Supported standards include 2G, 3G, and 4G, so communication is possible wirelessly almost anywhere - Huawei recommends using it whenever reception is stable. In terms of operation, there are otherwise hardly any restrictions. The dongle operates in the temperature range of -30 °C to +65 °C and tolerates relative humidities of 5% to 95%. The dongle is protected according to protection class IP65 and has a power consumption of 3.5 watts.
Once correctly connected, the module provides direct feedback to the operator via LED indicator - this is useful not only during commissioning. The compact design of the Huawei Smart DongleA-03 4G should be mentioned; including the housing, the device measures only 130 x 48 x 33 mm with a weight of 90 g. Compatibility with the inverter is essential for smooth operation. The Huawei Smart DongleA-03 4G presents itself here with a long list of supported models from the SUN2000 series. Installation and operation succeed without effort, yet the smart technology offers a high added value.
- Max. 10 supported devices
- Connection interface USB
- Plug-and-play installation
- Display LED - Indicator
Plug & Play
Supports up to 10 devices
Protection class IP65
2G, 3G, 4G communication1
Compatible with third-party management systems2
Huawei Smart DongleA-03 4G - Technical Specifications
All facts and figures are summarised for you in a compact and up-to-date form at.
Huawei Smart DongleA-03 4G - General Specifications
Max. supported devices: 10
Connection interface: USB
Display: LED - indicator
Dimensions (W x H x D): 130 x 48 x 33 mm
Weight: 90 g
Protection class: IP65
Power consumption (typical): 3.5 W
Huawei Smart DongleA-03 4G - WLAN Parameters
SIM card type: Mini-Sim (15 mm x 25 mm)
Supported standards and frequencies3:
4G: FDD-LTE / TDD-LTE
3G: WCDMA / HSDPA / HSUPA / HSPA+
2G: GSM / GPRS / EDGE
Huawei Smart DongleA-03 4G - Environment
Operating temperature range: -30 ℃ to +65 ℃
Relative humidity in operation: 5 - 95% RH
Storage temperature range: -40℃ to +70℃
Max. Operating altitude: 4000 m
Huawei Smart DongleA-03 4G - Standards Compliance
Huawei Smart DongleA-03 4G - Inverter Compatibility
Huawei Smart DongleA-03 4G - Notes and explanations
1 To ensure stable data transmission, Huawei suggests installing the 4G dongle in areas with stable mobile signal (2G signal ≥ 4 bars, 3G / 4G signal ≥ 3 bars).
2 The third-party management system must match the communication protocol from the Huawei Smart Dongle.
3 For a list of recommended operators and details of supported frequencies, please contact local dealers
