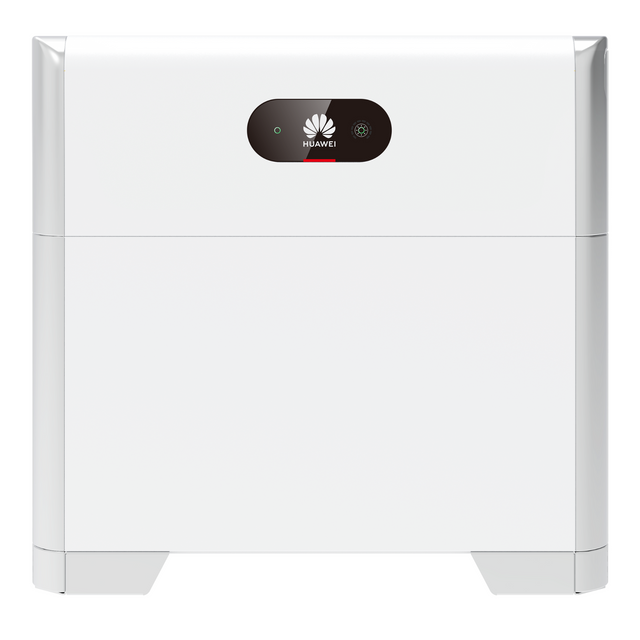

HUAWEI LUNA2000-5-S0 PV Storage Battery

Loghează-te pentru a vizualiza prețuri 12.078,37 lei


Livrare

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Descriere

Buy Huawei LUNA2000-5-S0 PV Battery from HYTECH

Why you should choose a LUNA2000-5-S0
PV Battery from Huawei now.

The Huawei Luna Smart String Battery offers a modular solution tailored to your needs. With 5 kWh, 10 kWh, or 15 kWh and the ability to expand later, the Luna battery is ideal for responding to changing needs. In combination with the optional PV Optimizer, you get a powerful system with high efficiency.

Safe and reliable

  • Modular design (5kWh)
  • Flexible planning
  • Expandable up to 30 kWh
  • Perfect compatibility
  • Can be combined with single-phase and three-phase Huawei inverters
  • Lithium iron phosphate cell
  • Multi-level safety concept

Huawei Luna advantages

  • Modular design with up to 15kWh
  • Parallel operation with 2 systems, up to 30kWh
  • Can be retrofitted at any time, plug and play
  • DC system, reduces losses
  • Real 15kWh, DOD of 100%
  • Lithium iron phosphate technology
  • For indoor and outdoor installation

Simple installation

  • Power module = 12 kg
  • Battery module = 50 kg
  • Quick commissioning
  • Recognition via APP
  • More energy
  • 100% depth of discharge
  • Load optimization

Huawei LUNA2000-5-S0 - Technical Specifications

All facts and figures are summarised for you in a compact and up-to-date form at.

Huawei LUNA2000-5-S0 - General Specifications

Dimensions (W*D*H): 670 * 150 * 600 mm
Weight (incl. stand): 63,8 kg
Power module dimensions (W*D*H): 670 * 150 * 240 mm
Power Module Weight: 12 kg
Battery module Dimensions (W*D*H): 670 * 150 * 360 mm
Battery module weight: 50 kg
Operating temperature range: -10°C~ +55°C1
Rel. humidity during operation: 5%~95%
Cooling: Convection cooling
Protection class: IP 65
Noise: <29 dB
Cell technology: Lithium iron phosphate (LiFePO4)
Warranty: 10 years2
Scalability: Parallel operation of max. 2 batteries
Installation: Stand (standard),
Wall mounting (optional)



Huawei LUNA2000-5-S0 - Performance

Power Module: LUNA2000-5KW-C0
Number of power modules: 1
Battery module: LUNA2000-5E0
Battery module capacity: 5 kWh
Number of battery modules: 1
Usable energy of the battery: 5 kWh
Nominal discharge power: 2.5 kW
Maximum discharge power: 3.5 kW, 10 s
Rated voltage (1-phase WR/L1): 360 V
Operating voltage range (1-phase WR/L1): 350 – 560 V
Rated voltage (3-phase WR - M1): 600 V
Operating voltage range (3-phase WR/M1): 600 – 980 V



Huawei LUNA2000-5-S0 - Compatible Inverters

SUN2000L-2/3/3.68/4/4.6/5KTL , SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0 , SUN2000-3/4/5/6/8/10KTL-M1

Huawei LUNA2000-5-S0 - Communication

Display: SOC Status - LED, Status - LED
Communication: RS485, CAN (only for parallel operation)

Huawei LUNA2000-5-S0 - Standards and Safety

Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3

Huawei LUNA2000-5-S0 - Product Names

1x LUNA2000-5-S0 consists of:
1x LUNA2000-5KW-C0 (power module)
1x LUNA2000-5-E0 (battery module)

Huawei LUNA2000-5-S0 - Notes and explanations

1 Charge/discharge power derating and heating if necessary at temperatures from -10°C to +5°C & +45°C to +55°C. Recommended operating temperature +15°C to +30°C.

2 Please refer to the valid warranty conditions for details.
