Why you should choose a Backup Box-B0
from Huawei now.

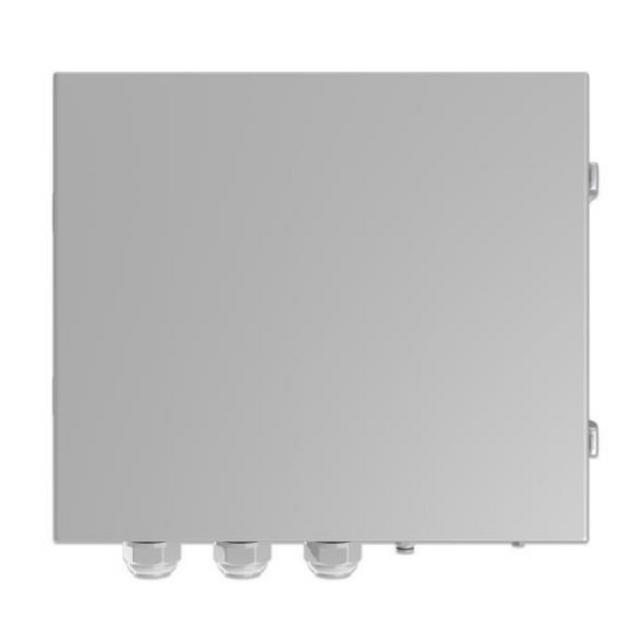

The Huawei Backup Box-B0 for the single-phase household grid ensures that your loads are supplied even in the event of a power failure. In combination with the L1 inverter series, the Backup Box enables emergency power operation in the event of a grid failure. The installation and operation of the Backup Box for solar systems is very straightforward. The device supports communication with the inverter simply by means of a digital input.
On-site installation is simple and safe. The device is protected against weather and environmental influences on site according to IP65. It can be operated in a range from -20°C to +45°C - in other words, in just about any plant. The dimensions of 400 x 350 x 130 mm are compact, so there are no space problems. The entire device weighs 11 kg. The single-phase output power of the B0 variant is 5,000VA.
- For 220/230V networks
- Single-phase emergency power output
- 5.000VA output
- Compact device
Easy to install on site
Huawei Smart Backup Box-B0 - Technical Specifications
All the latest facts and figures
summarized compactly for you.
Huawei Smart Backup Box-B0 - General Specifications
Operating temperature range: -20 to +45 °C Relative humidity during operation: 0 % RH to 100 % RH Dimensions (W*H*D) : 400 x 350 x 130 mm Weight: 11 kg Protection class: IP 65
Huawei Smart Backup Box-B0 - AC Output (Mains Powered)
Mains connection: Single-phase Operating voltage: 220 V / 230 V AC Mains frequency: 50Hz / 60Hz Voltage range AC: 198 V ~ 253 V
Huawei Smart Backup Box-B0 - AC Output (Backup)
Lastanschluss: Einphasig Nennspannung: 220 V / 230 V AC-Frequenz: 50Hz / 60Hz Maximale Scheinleistung: 5000 VA Maximaler Ausgangsstrom: 22,7 A Umschaltungszeit: < 3 Sek.
Huawei Smart Backup Box-B0 - AC Input (Inverter)
Rated voltage: 220 V / 230 V AC frequency: 50Hz / 60 Hz Compatible inverters: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
