HUAWEI

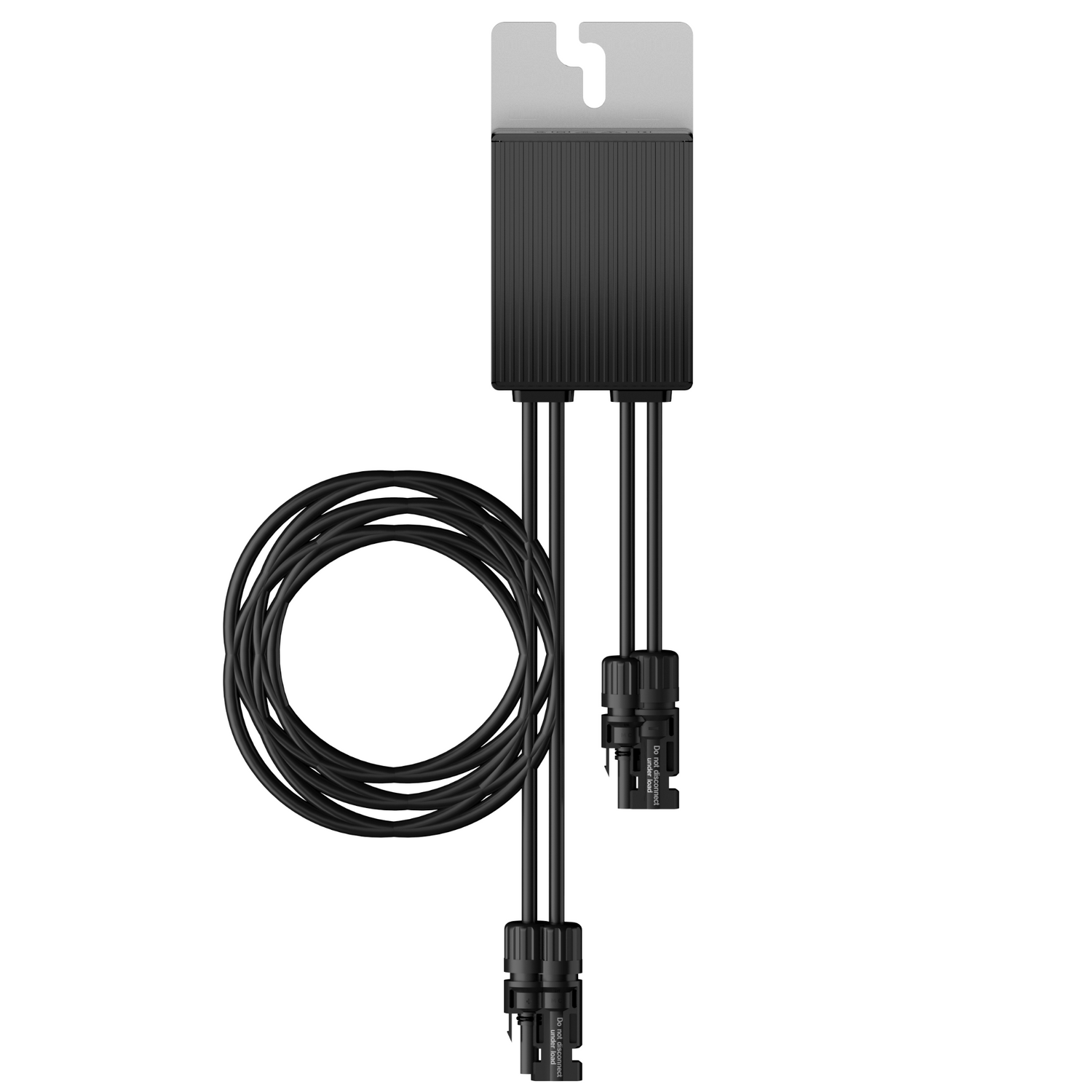

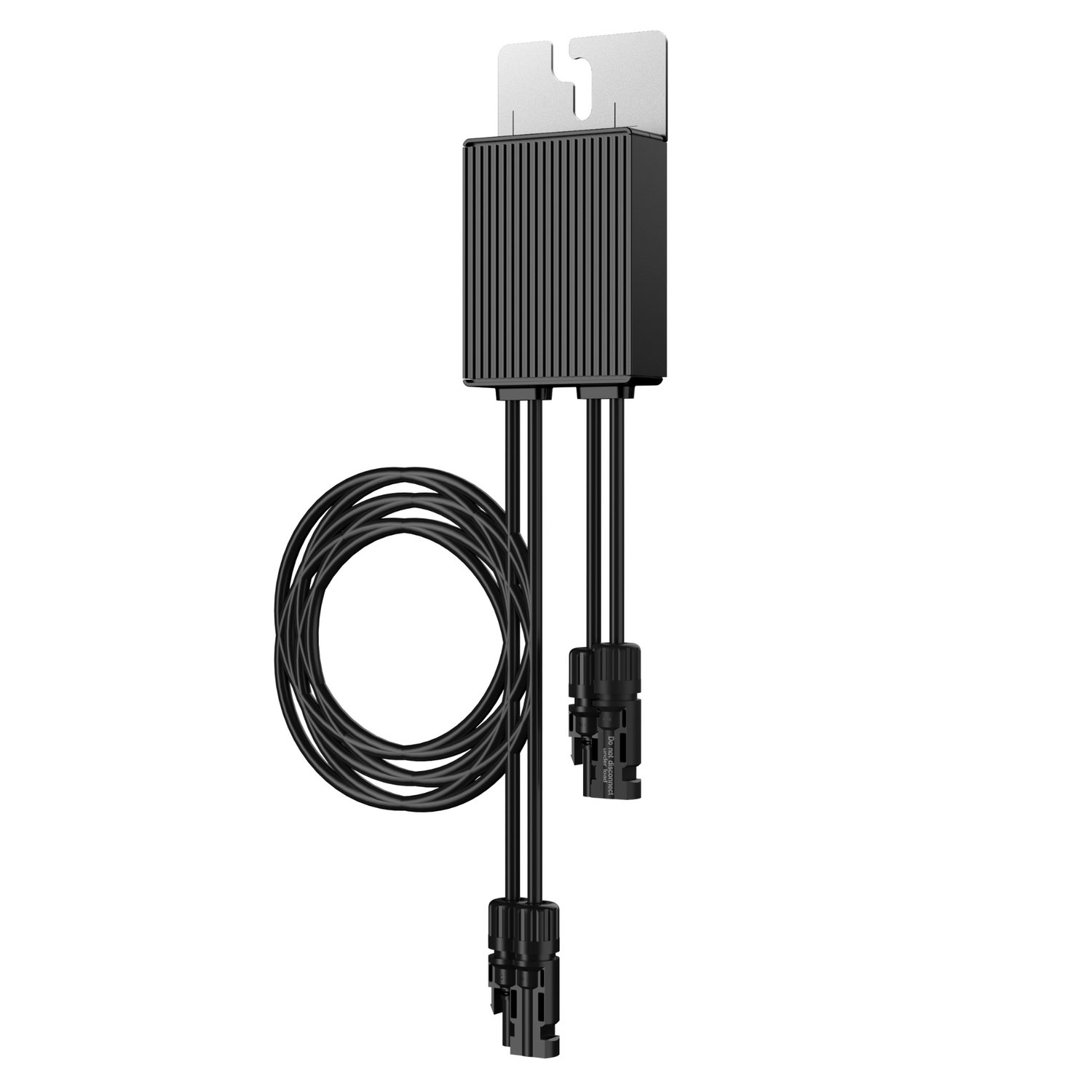

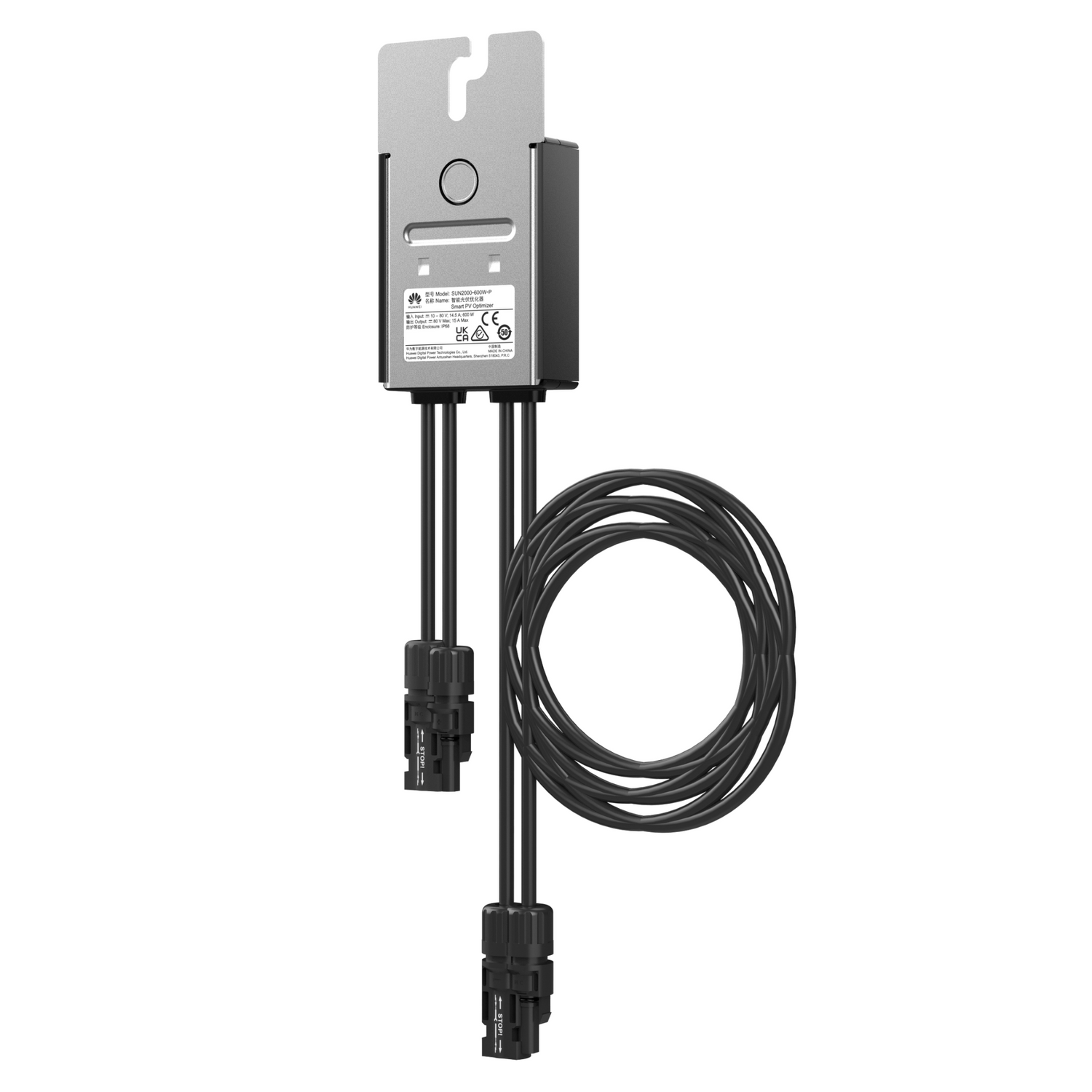

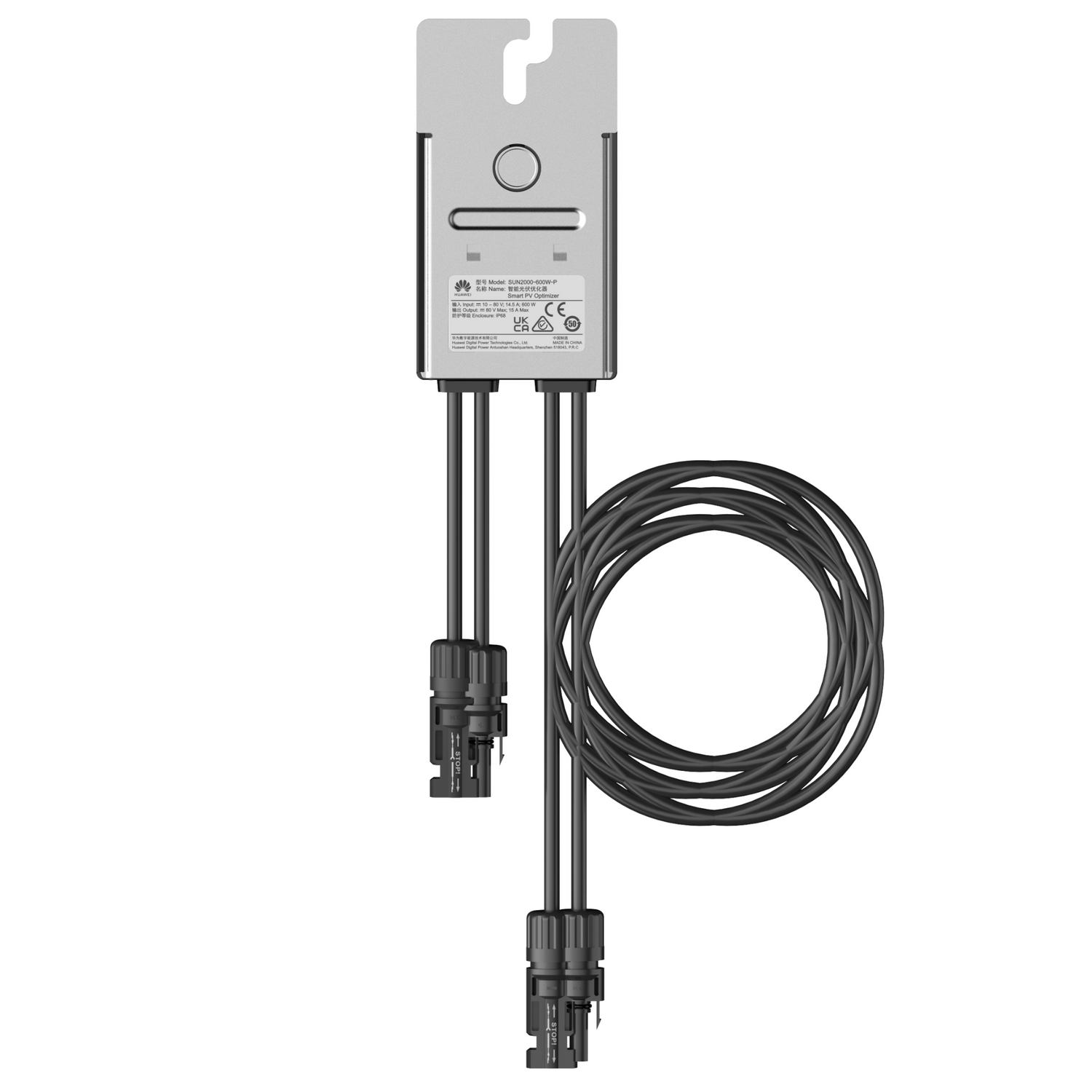

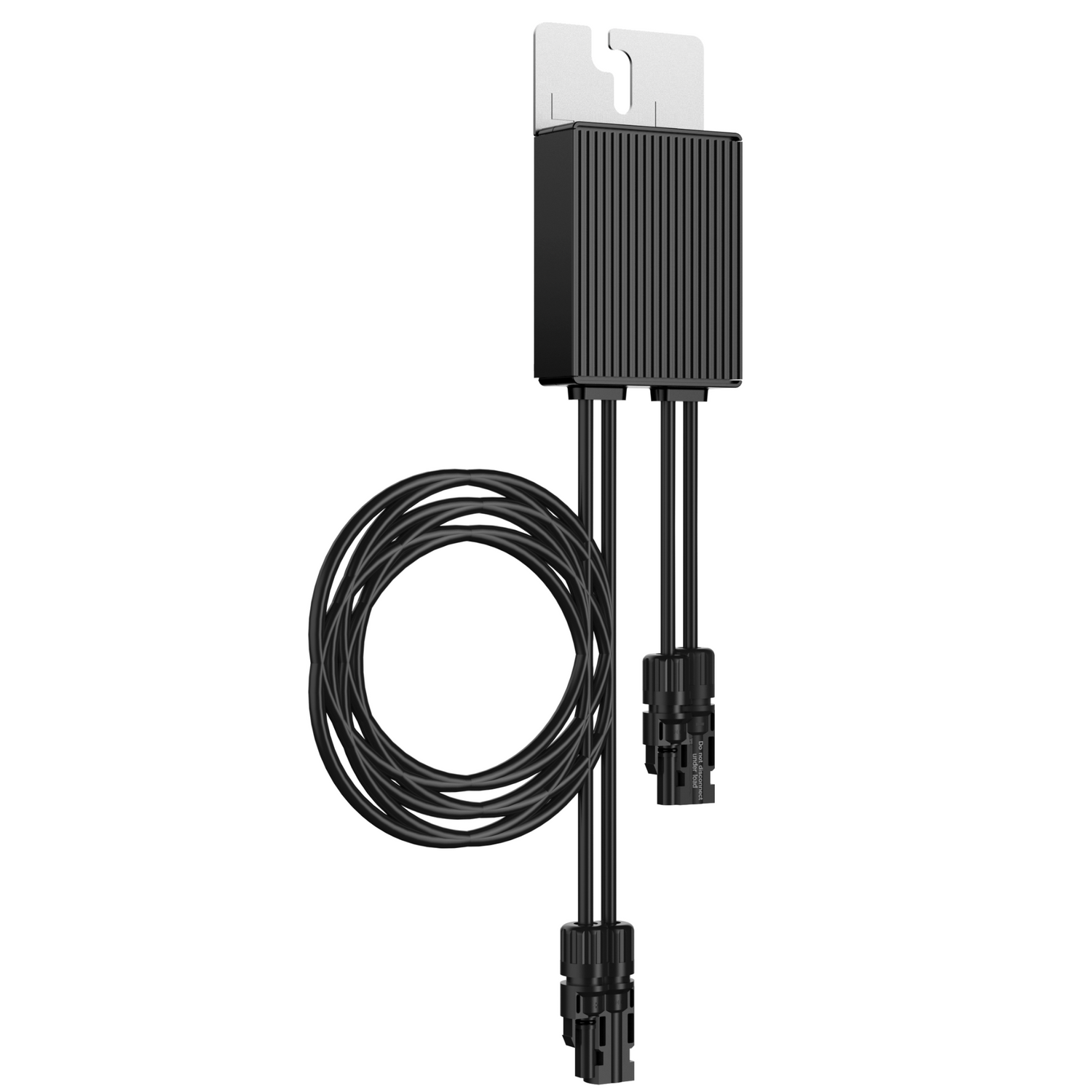

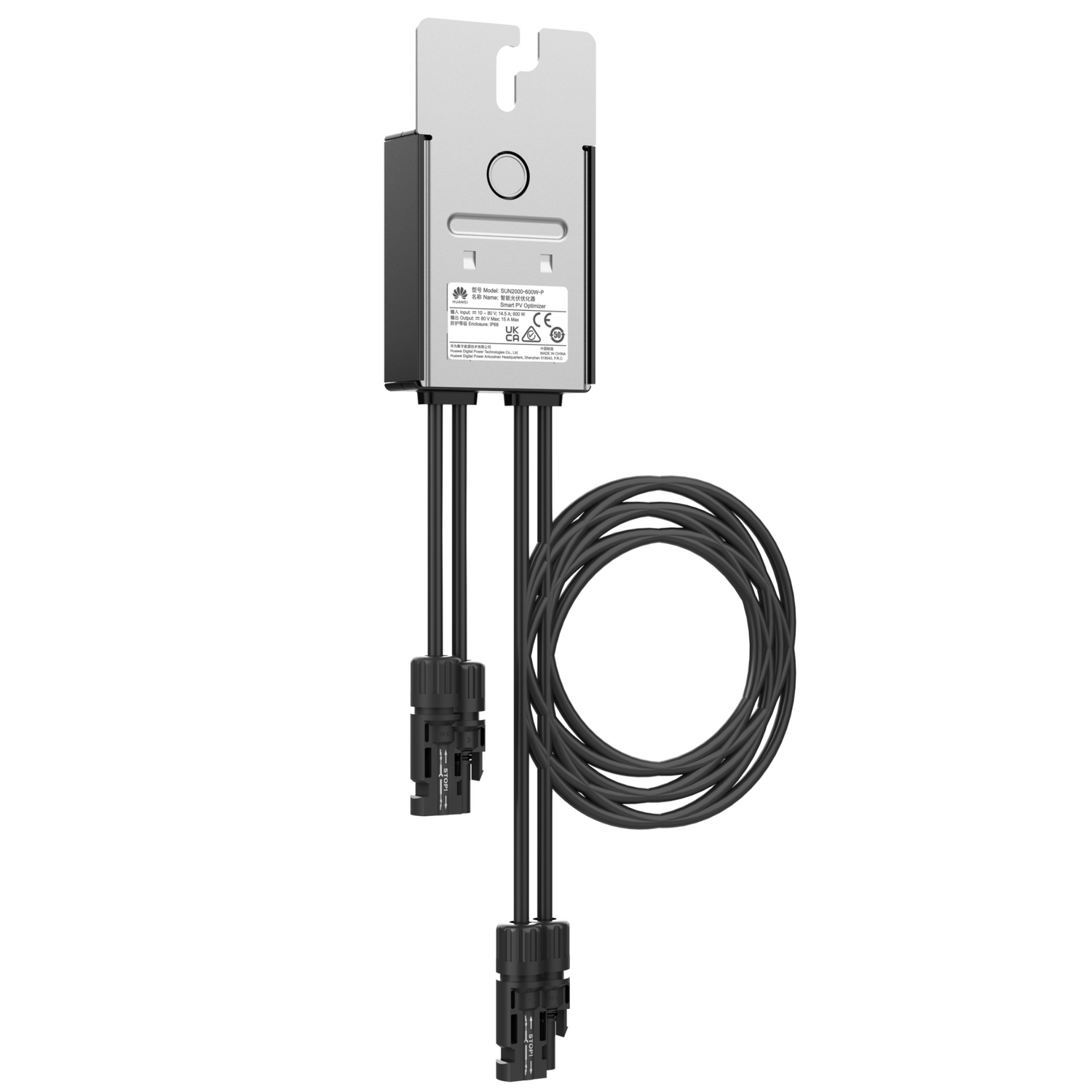

HUAWEI - Smart PV Optimizer SUN2000-600W-P

Loghează-te pentru a vizualiza prețuri 189,62 lei

Livrare

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Descriere

Buy Huawei Smart SUN2000-600W-P Optimizer at HYTECH

Why you should choose a Smart SUN2000-600W-P
Optimizer from Huawei now.

The Huawei Smart SUN2000-600W-P Optimizer is designed to get the maximum power out of a solar panel. In this way, the component can once again noticeably increase the efficiency of the system. In order to achieve this, modern technology is integrated by the manufacturer. The Huawei Smart SUN2000-600W-P Optimiser measures 71 x 138 x 25 mm and weighs 550 g, so it is easy to install on the module. For integration into the system, there is one input and one output connector each Staubil MC4. The cable has a length of 1.2 metres, which promises flexibility during installation.

On the technical side, the Huawei Smart SUN2000-600W-P Optimiser offers a rated input power of 600 watts at an absolute input voltage of 80 volts, the possible voltage range is 10 to 80 volts. The optimiser handles an input current of 14.5 A. The component complies with overvoltage category II. The enormously high efficiency of 99.5 % (weighted efficiency 99.0 %) is impressive. This underlines the claim of the power optimiser to increase the efficiency of the system. The adaptability of the component should also be emphasised; the Huawei Smart SUN2000-600W-P Optimizer is a so-called one-fits-all element that is compatible with various modules. Pairing with the inverter is quick and easy.

  • Power1: 600 W
  • Overvoltage category: II
  • Max. Efficiency: 99.5 %
  • Weighted efficiency: 99.0 %.
  • Protection class: IP68

Higher Yield - Huawei Inverter

Adaptability

One-Fits-All Optimizer

Higher Yield - Huawei Inverter

Safe and reliable

Arc Fault Pinpoint Positioning

Higher Yield - Huawei Inverter

Simple and easy

Einfacheres Geschäft <1,5 min Pairing mit Wechselrichter

Huawei Smart SUN2000-600W-P Optimizer - Technical Specifications

All facts and figures are summarised for you in a compact and up-to-date form at.

Huawei Smart SUN2000-600W-P Optimizer - General Data

Dimensions (W x H x D): 71 x 138 x 25 mm (2.8 x 5.4 x 1.0 in.)
Weight (including cable): 0.55 kg
Installation part (optional): Grounding plate, grounding clamp, PV module frame plate
Input connector: Staubli MC4
Output connector: Staubli MC4
Length of output cable4: 1.2 m
Operating temperature5: -40 ～ +85 ℃
Humidity range: 0% RH～ 100% RH
Protection class: IP68
Warranty: 25 years

Huawei Smart SUN2000-600W-P Optimizer - Input

Rated input power1: 600 W
Absolute maximum input voltage: 80 V
MPPT operating voltage range: 10 - 80 V
Max. Input Current: 14.5 A
Max. Efficiency: 99.5 %
Weighted efficiency: 99.0 %
Overvoltage category: II

Huawei Smart SUN2000-600W-P Optimizer - Output

Max. Output voltage: 80 V
Max. Output current: 15 A
Output bypass2: Yes
Output voltage switch-off per optimiser30 V
Output impedance at switch-off per optimiser: 1 k ohm ± 10%.

Huawei Smart SUN2000-600W-P Optimizer - Output

Max. Output voltage: 80 V
Max. Output current: 15 A
Output bypass2: Yes
Output voltage switch-off per optimiser30 V
Output impedance at switch-off per optimiser: 1 k ohm ± 10%.

Long String Design (Full Optimizer)

SUN2000-2-6-KTL-L1: 4 - 25 | 6,000 W
SUN2000-3-10KTL-M1: 6 - 35 | 10,000 W
SUN2000-12-20KTL-M2: 6 - 35 | 12,000 W
SUN2000-30-40 KTL-M3: 6 - 25 | 12,000 W

Huawei Smart SUN2000-600W-P Optimizer - Communication Protocol

Communication protocol: MBUS

Huawei Smart SUN2000-600W-P Optimizer - Standards Compliance

Safety: IEC62109-1 (Safety Class II)
RoHS: Yes

Huawei Smart SUN2000-600W-P Optimizer - Inverter - Compatibility

Compatible product:
SUN2000-2 / 3 / 3.68 / 4 / 4.6 / 5 / 6 KTL-L1
SUN2000-3 / 4 / 5 / 6 / 8 / 10 KTL-M1
SUN2000-12 / 15 / 17 / 20 KTL-M2
SUN2000-30 / 36 / 40 KTL-M3

Huawei Smart SUN2000-600W-P Optimizer - Notes and Explanations

1 In the STC environment, the rated power of the module must not exceed 1.05 times the input rated power of the optimiser.

2 The power optimiser is bypassed in a string connected to an inverter in operation when it is not working.

3 OVdc output of the power optimiser when the connection to the inverter is disconnected or the inverter is switched off.

4 Enables installation of PV modules in frame/installation/extruded aluminium profiles

5 Fits PV module in landscape and portrait installation.

6 Requires standard 60 cell module to meet minimum inverter start voltage.

7 Full performance refers to the intelligent online design tool.
