Smart e-car charging station for all private living areas

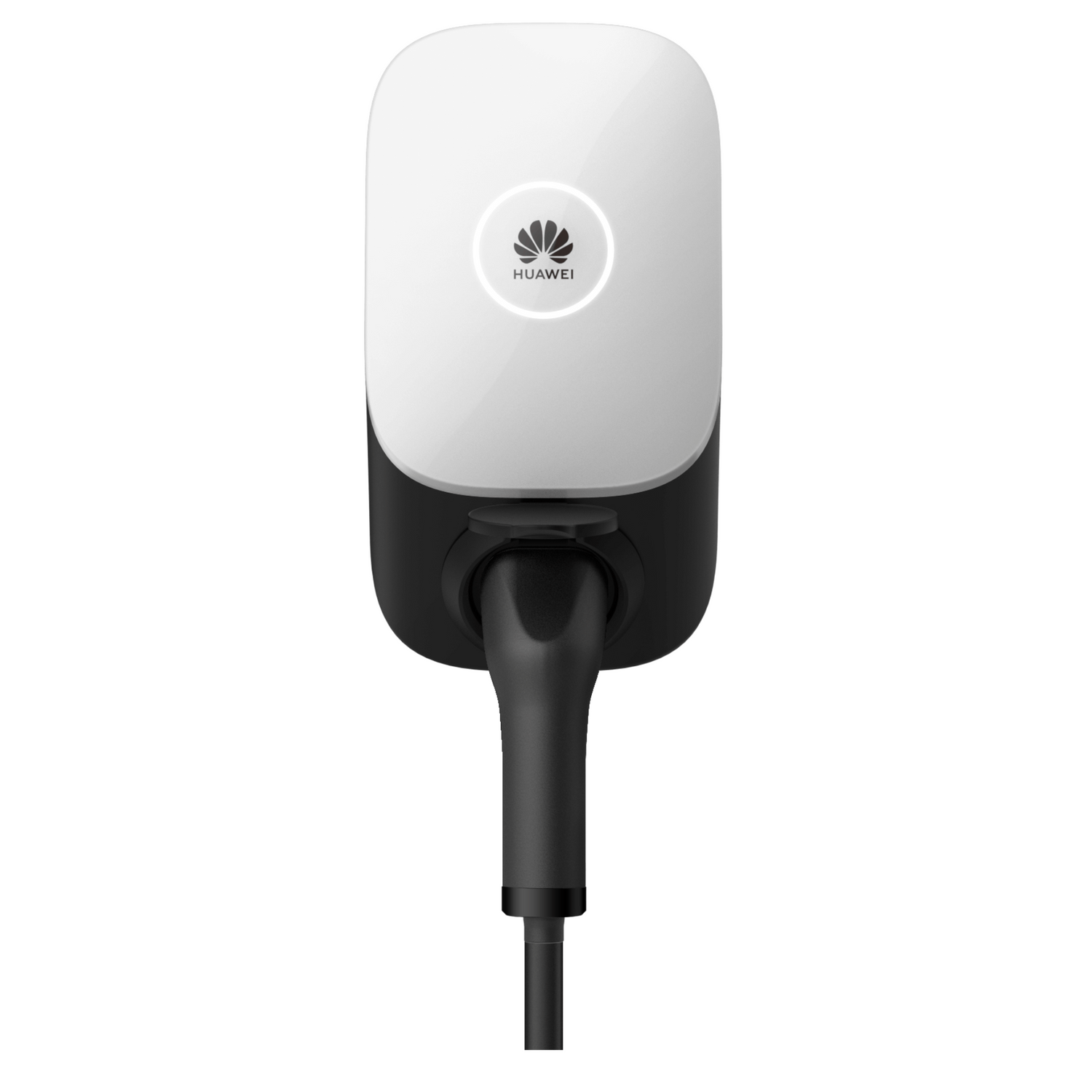

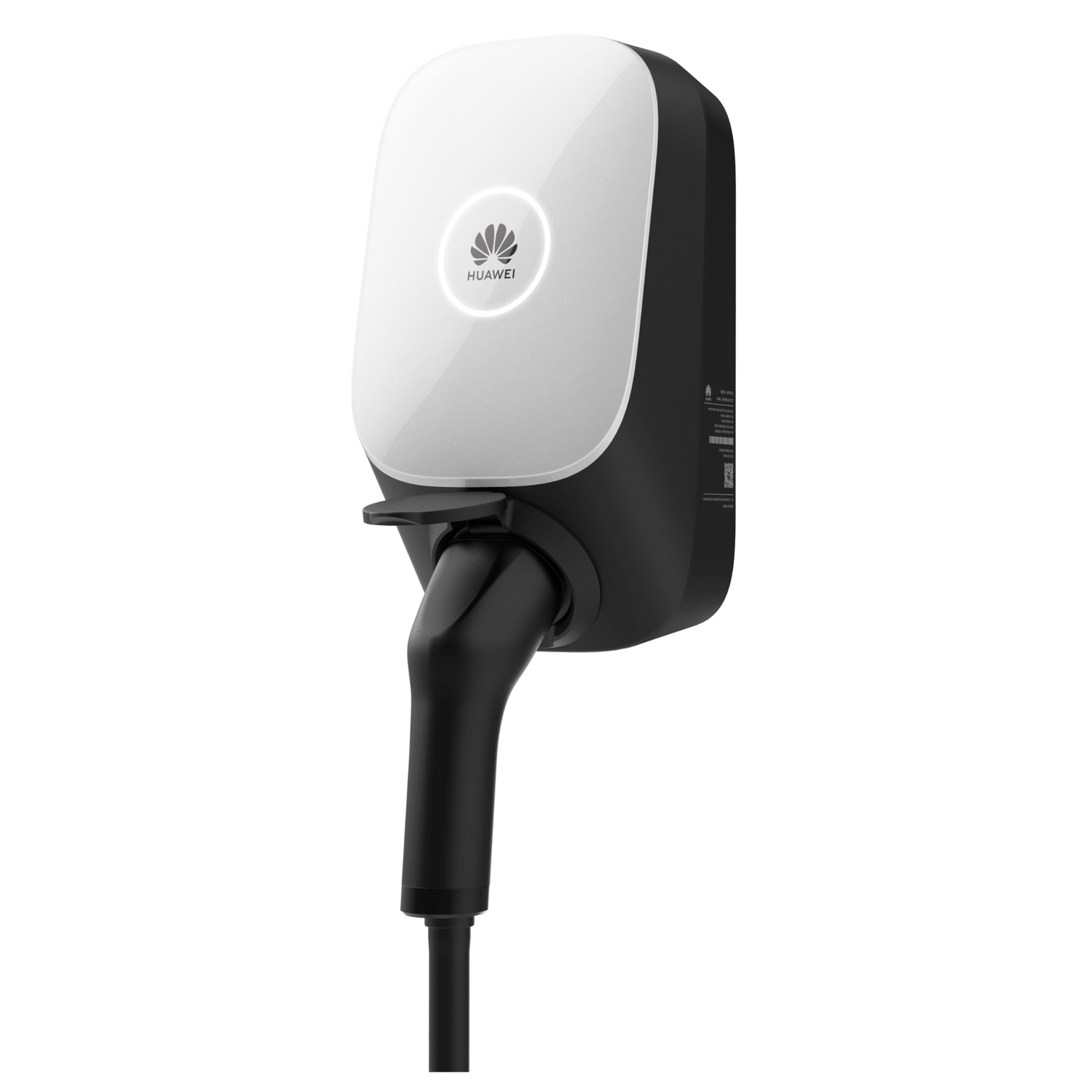

HUAWEI SCharger-7KS-S0 E-car charging station
The smart HUAWEI SCharger-7KS-S0 charging station charges electric cars with up to 7.4 kW charging power. Different modes like fast charging, surplus charging are selectable and scheduled charging times can be pre-programmed. The HUAWEI SCharger-7KS-S0 is compatible with all common charging cables. The dimensions are 335x180x145mm. The lightweight device weighs only 2.8kg. Access to the charging station is secured via RFID, Bluetooth and app. A simple configuration of the HUAWEI SCharger-7KS-S0, which can be installed both indoors and outdoors, makes commissioning via FusionSolar App very simple.
- 3 different operation modes selectable: fast charge, surplus charge from PV, scheduled charge time.
- Compatible with Huawei FusionSolar Inverter & Battery Storage
- Standalone or in combination with PV system
- Retrofittable into existing plants
- Commissioning via FusionSolar App
- Easy & fast installation in only 3 steps
- Active load management
- Cable theft protection by means of E-Lock
- All-current sensitive residual current detection Type A + DC 6 mA (IEC 62955 & IEC 61008-1) integrated
- Authentication via RFID (ISO-14443-A), Bluetooth, App
- Easy configuration, automatic detection of FusionCharge AC
- Indoor & Outdoor Installation
- Standalone or in combination with PV system
- Communication via WLAN or Ethernet
- Free plant monitoring with FusionSolar (in connection with PV plant)
- Integrated overvoltage protection TYPE II
- 2 years warranty
- Protection class IP54
High security
- Full control through an app
- Cable e-lock for anti-theft
Dynamic charging power *2
- automatic detection and adjustment of the charging power
- integrated overload protection
*2 Available in Green Power Preferred Mode
Light and compact
only 3 kg

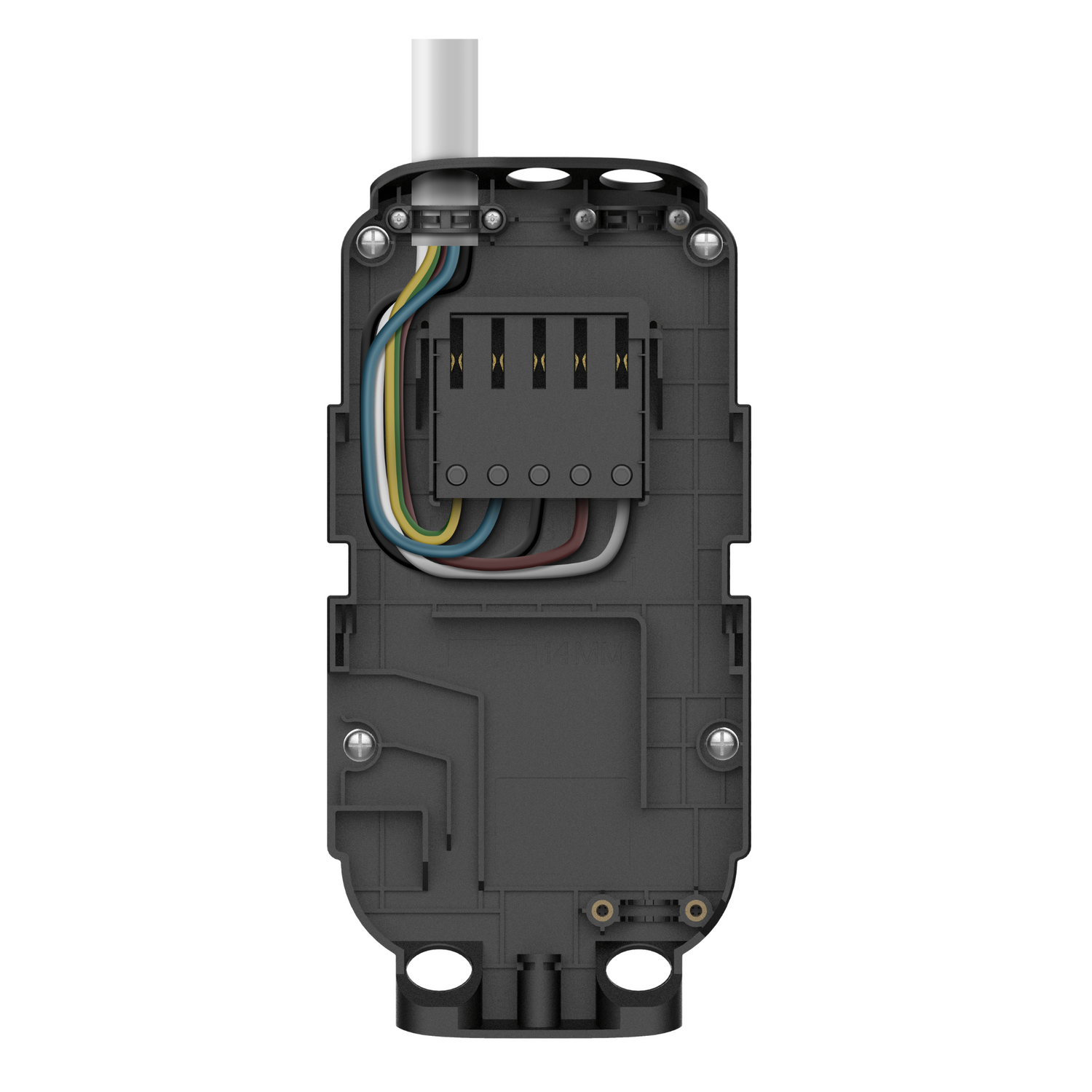

Simple installation
- quick installation in 16 minutes
- wiring-free maintenance
HUAWEI SCharger-7KS-S0 - Technical Specifications
All the latest facts and figures
summarized compactly for you.
HUAWEI SCharger-7KS-S0 - General Data
Betriebstemperaturbereich: -35 °C ~ +45 °C
Relative Betriebsfeuchtigkeit: 5 % RH ~ 95 % RH
Betriebshöhe: ≤ 2000 m (derating zwischen 2000 ~ 4000m)
Anzeige: WRGB LED, App
Kommunikation: WiFi / Ethernet
Gewicht (inkl. Montageplatte): 3 kg
Abmessungen: 335 mm x 180 mm x 145 mm
Schutzart: IP54
Energieverbrauch Standby: < 6 W
max. Kabelquerschnitt: 10 mm2
Garantie: 2 Jahre
HUAWEI SCharger-7KS-S0 - protection and function
Residual current protection: Yes - Type A, AC 30mA, DC 6mA (IEC 62955 & IEC 61008-1)
Overcurrent protection: Yes IEC 61851-1
Overvoltage protection: Yes (TYPE II)
System monitoring: Yes
Retrofittable to existing systems: Yes
HUAWEI SCharger-7KS-S0 - Standards compliance (others available on request)
Standards: EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1
Accessories: 2 x RFID Card
