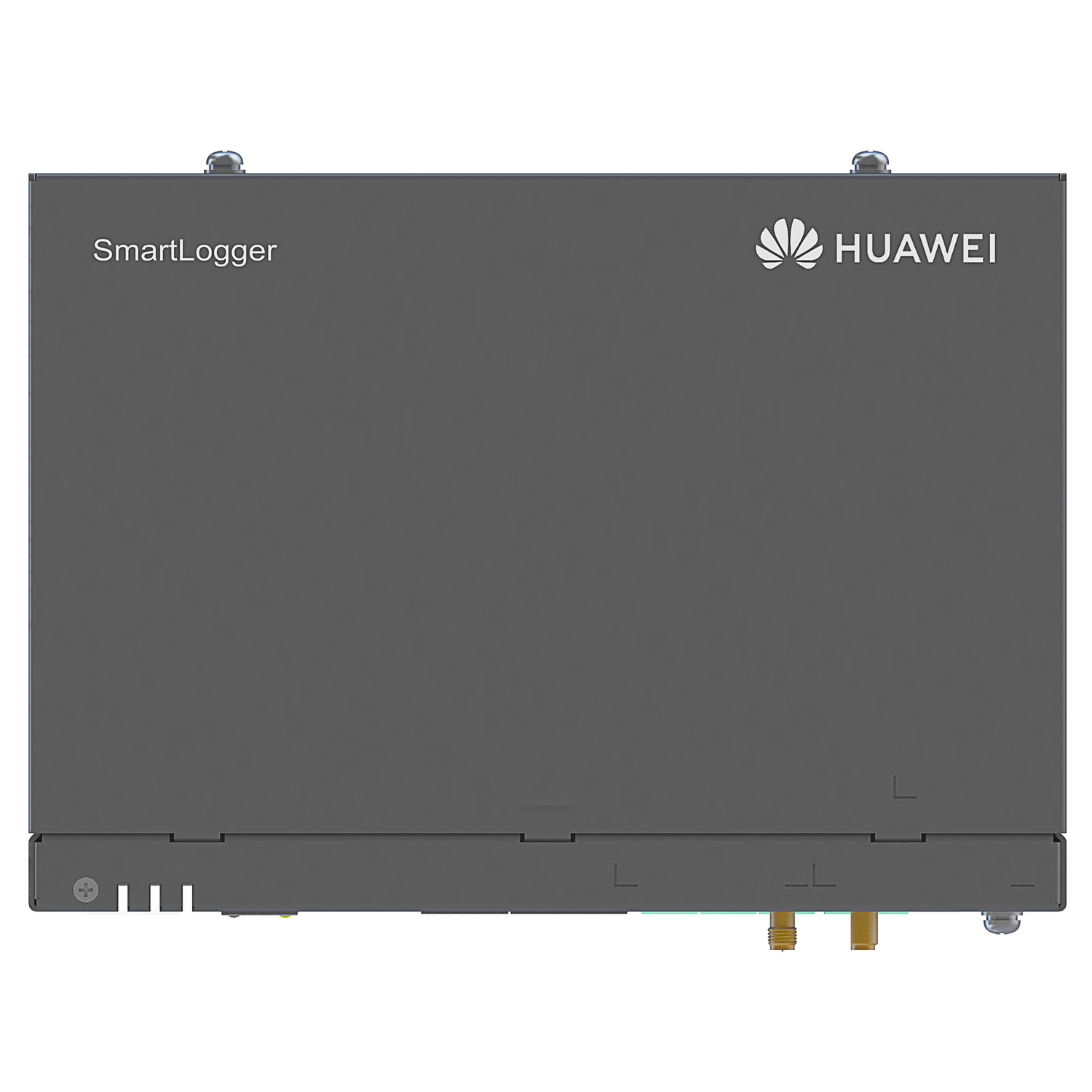

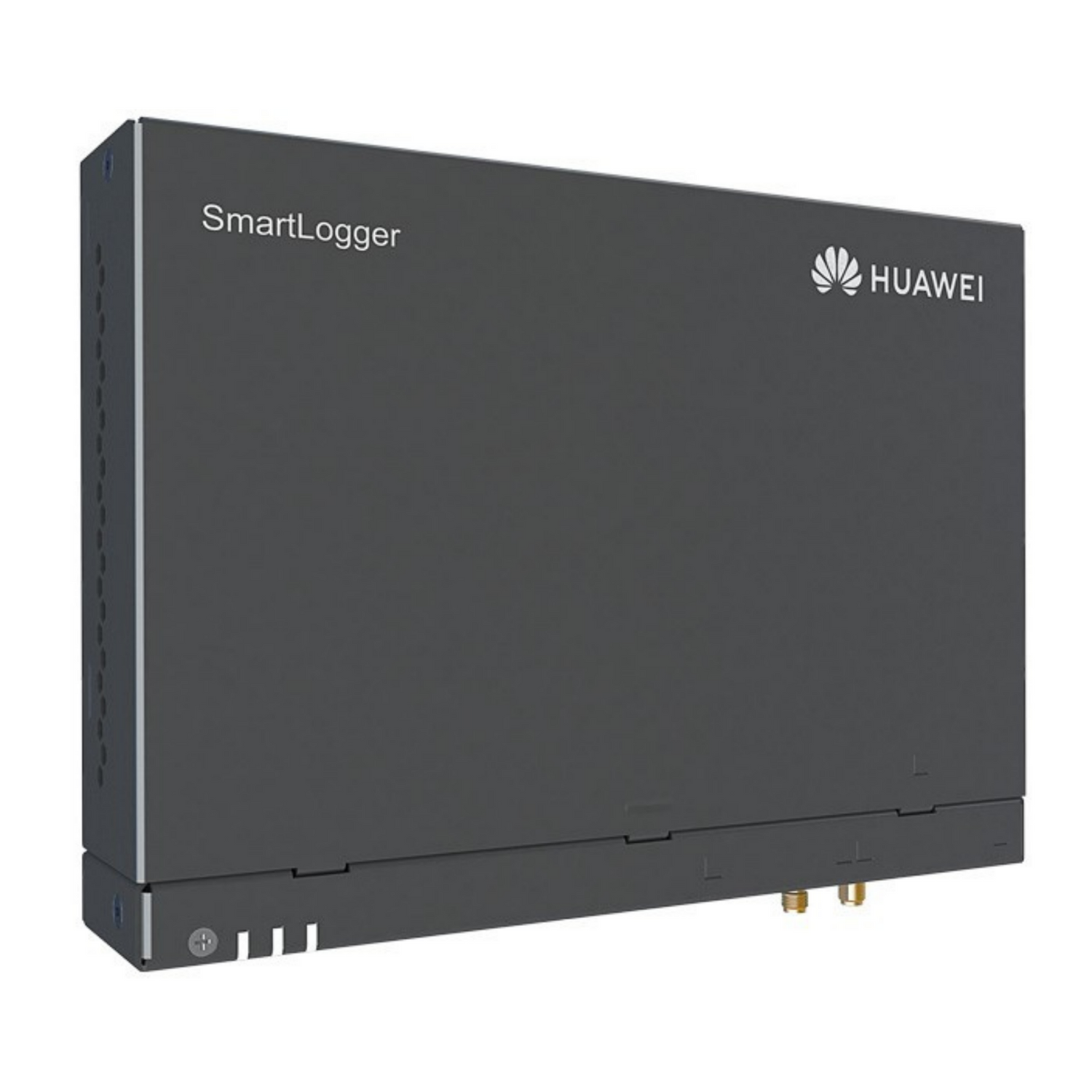

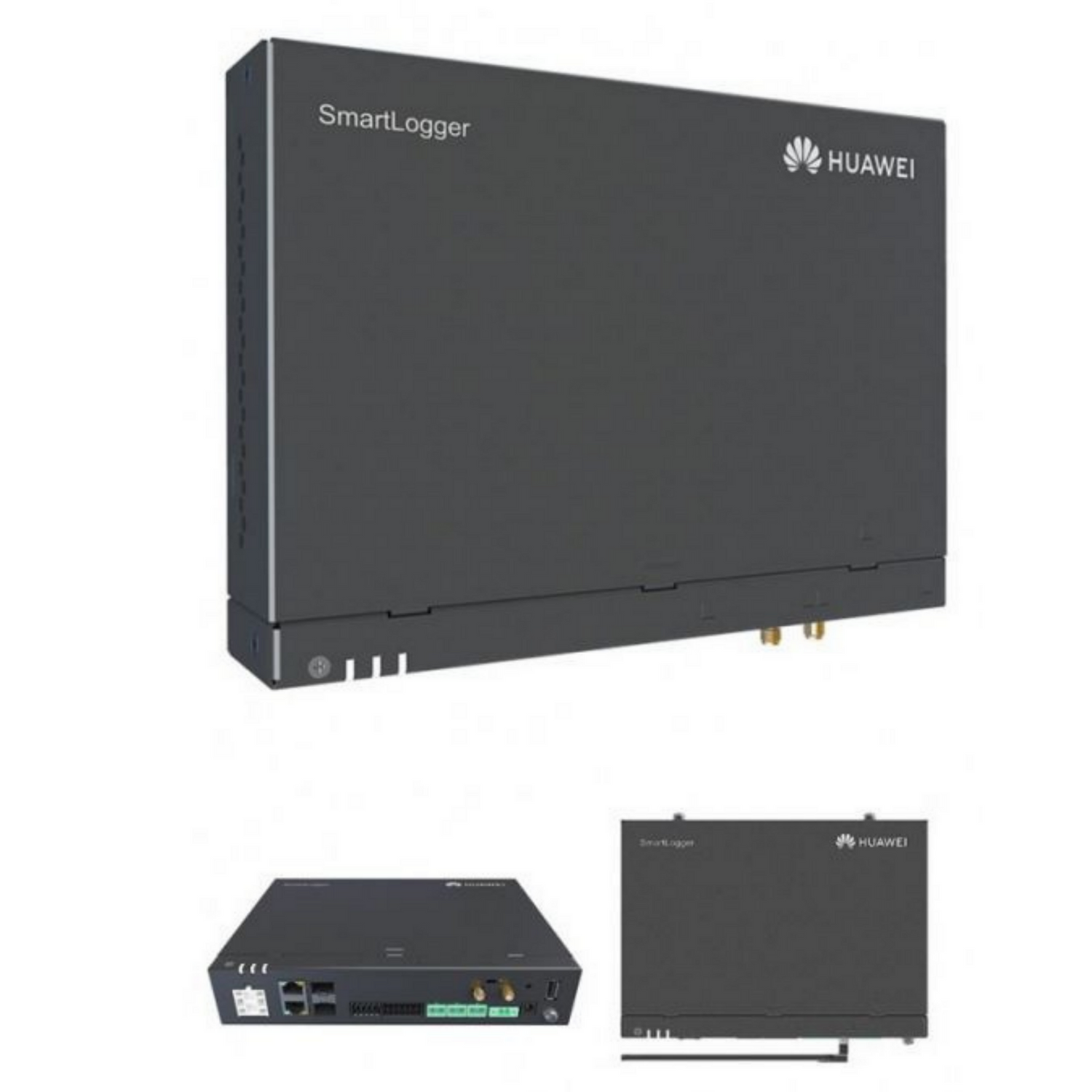

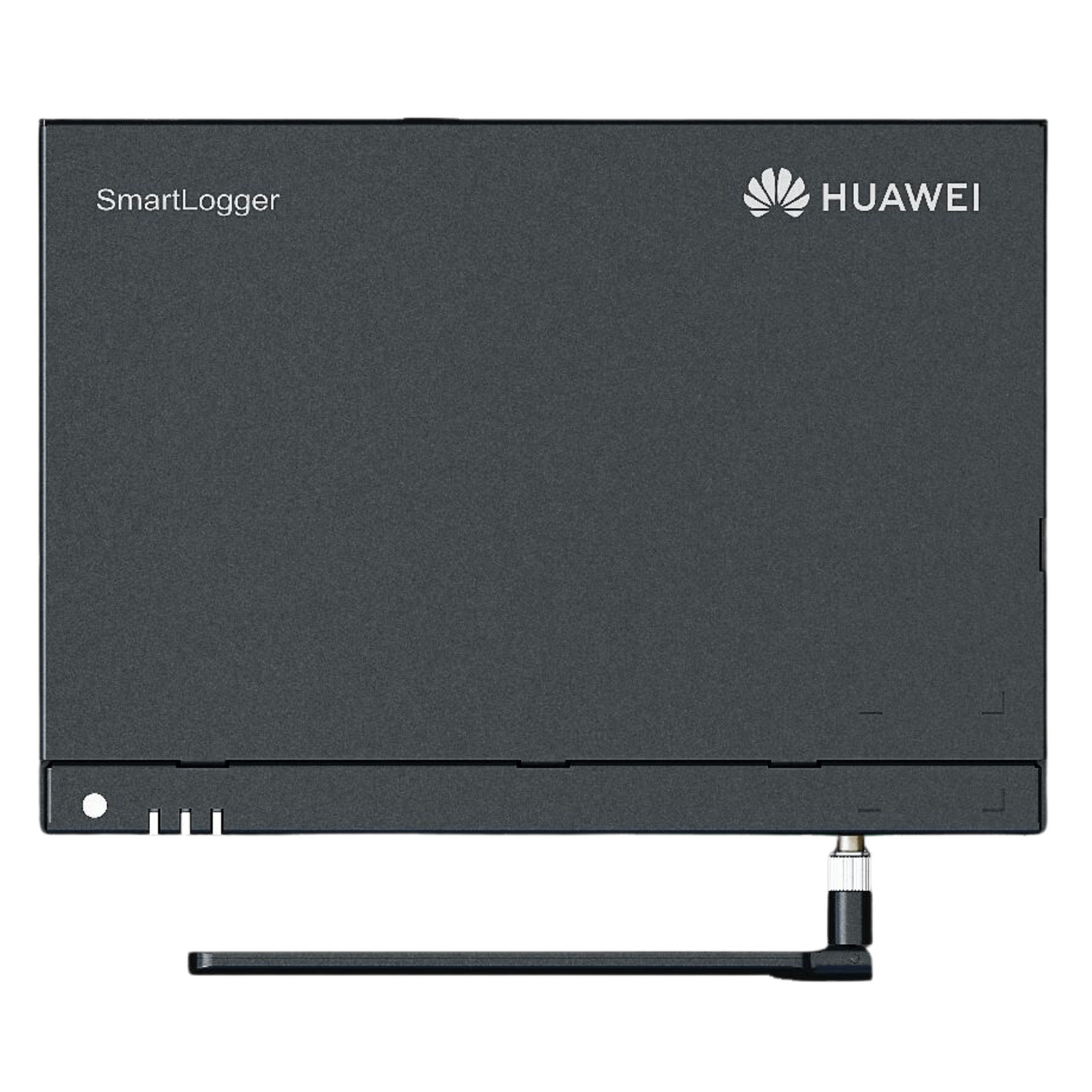

HUAWEI SmartLogger 3000B02EU

Loghează-te pentru a vizualiza prețuri 4.258,00 lei

HUAWEI SmartLogger 3000B02EU este în așteptare și va fi expediat de îndată ce este din nou în stoc.


Livrare

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Descriere

Buy Huawei SmartLogger 3000B02EU from HYTECH

Why you should choose a SmartLogger 3000B02EU
from Huawei now.

The Huawei SmartLogger 3000B02EU can manage up to 200 devices, 150 of which are inverters. This makes the data logger an ideal solution for large installations and complex systems. For communication with the other devices, the Huawei SmartLogger 3000B02EU opens up numerous possibilities: It supports RS485, MBUS, fiber optics, and Ethernet. The device also offers a high degree of flexibility in terms of environmental conditions: operation is possible at temperatures ranging from -40 °C to + 60 °C, and the humidity can range from 5 % to 95 %. The housing is secured according to protection class IP 20. The dimensions of the Huawei SmartLogger 3000B02EU are 225 x 160 x 44 mm (calculated without the mounting brackets). Thus, the 2 kg module can be installed in a space-saving manner. In any case, commissioning is extremely easy: The smart One-Click-System guides the user through the setup process. Thanks to the commissioning wizard on the Huawei Fusion Solar app, the entire process is particularly safe.

In summary, the Huawei SmartLogger 3000B02EU scores with many advantages from simple commissioning to safe operation. Since the data logger is specially designed for use at the industrial level, it also convinces with a particularly high reliability. Interaction is via integrated LEDs. The material required for the installation and operation of the Huawei SmartLogger 3000B02EU is mainly included directly in the scope of delivery, for example the mains adapter. It is good to know that the device works very economically, the typical power consumption is 8 watts or 10 watts.

  • Max. 200 manageable devices
  • Max. 150 manageable inverters
  • Installation via FusionSolarApp
  • Integrated web server
  • Communication via RS485, MBUS, LWL and Ethernet

Higher Yield - Huawei Inverter

Secure

Commissioning Wizard

Higher Yield - Huawei Inverter

Smart

One-Click Commissioning

Higher Yield - Huawei Inverter

Reliable

Industrial level application and high reliability

Huawei SmartLogger 3000B02EU - Technical Specifications

All facts and figures are summarised for you in a compact and up-to-date form at.

Huawei SmartLogger 3000B02EU - General Data

Operating temperature range: -40 ~ +60 °C
Relative humidity: 5 % RH~ 95 % RH
Operating altitude: max. 4,000 m
Power consumption: Typically 8 W, Max. 15 W
Display: LEDs
Communication: RS485, MBUS, Ethernet and FO
Weight: 2 Kg
Dimensions (without mounting brackets) : 225 x 160 x 44 mm
Protection class: IP20

Huawei SmartLogger 3000B02EU - Communication Interfaces

WAN: WAN x 1, 10 / 100 / 1000 Mbps
LAN: LAN x 1, 10 / 100 / 1000 Mbps LAN x 3, 10 / 100 / 1000 Mbps
Optical Ethernet: SFP x 2, 100 / 1000 Mbps
MBUS: MBUS x 1, 115.2 kbps, PLC compatible
RS485: COM x 3, 1200 / 2400 / 4800 / 9600 / 19200 / 115200 bps
Digital / Analog Input / Output: DI x 4, DO x 2, AI x 4
Active DO: 12V, 100mA (power supply for a relay or sensor)
Overvoltage Protection: Yes

Huawei SmartLogger 3000B02EU - Communication Protocol

Ethernet: Modbus TCP, IEC 60870-5-104
RS485: Modbus RTU, IEC 60870-5-103 (standard), DL / T645

Huawei SmartLogger 3000B02EU - Device Management

Max. Number of manageable devices: 200
Max. Number of manageable inverters: 150

Huawei SmartLogger 3000B02EU - Interaction

Display: LEDs
WEB: Integrated web server
USB: USB 2.0 x 1
APP: Communication via WLAN for commissioning

Huawei SmartLogger 3000B02EU - Power supply

Power supply: AC 100 V~240 V, 50 Hz / 60 Hz
Power supply: DC 12V / 24 V
Power consumption: Typically 8 W, Max. 15 W Typically 10 W, Max. 18 W

Huawei SmartLogger 3000B02EU - included in delivery

Mains cable 230V
Mains adapter 12VDC + holder
Patch cable
Plug for DI/AI/DO contacts
Plug for RS485
Plug for MBUS
