Buy Huawei Smart Optimizer MERC-1100W-P at HYTECH
Why they should choose a Smart Optimizer MERC-1100W-P from Huawei now.

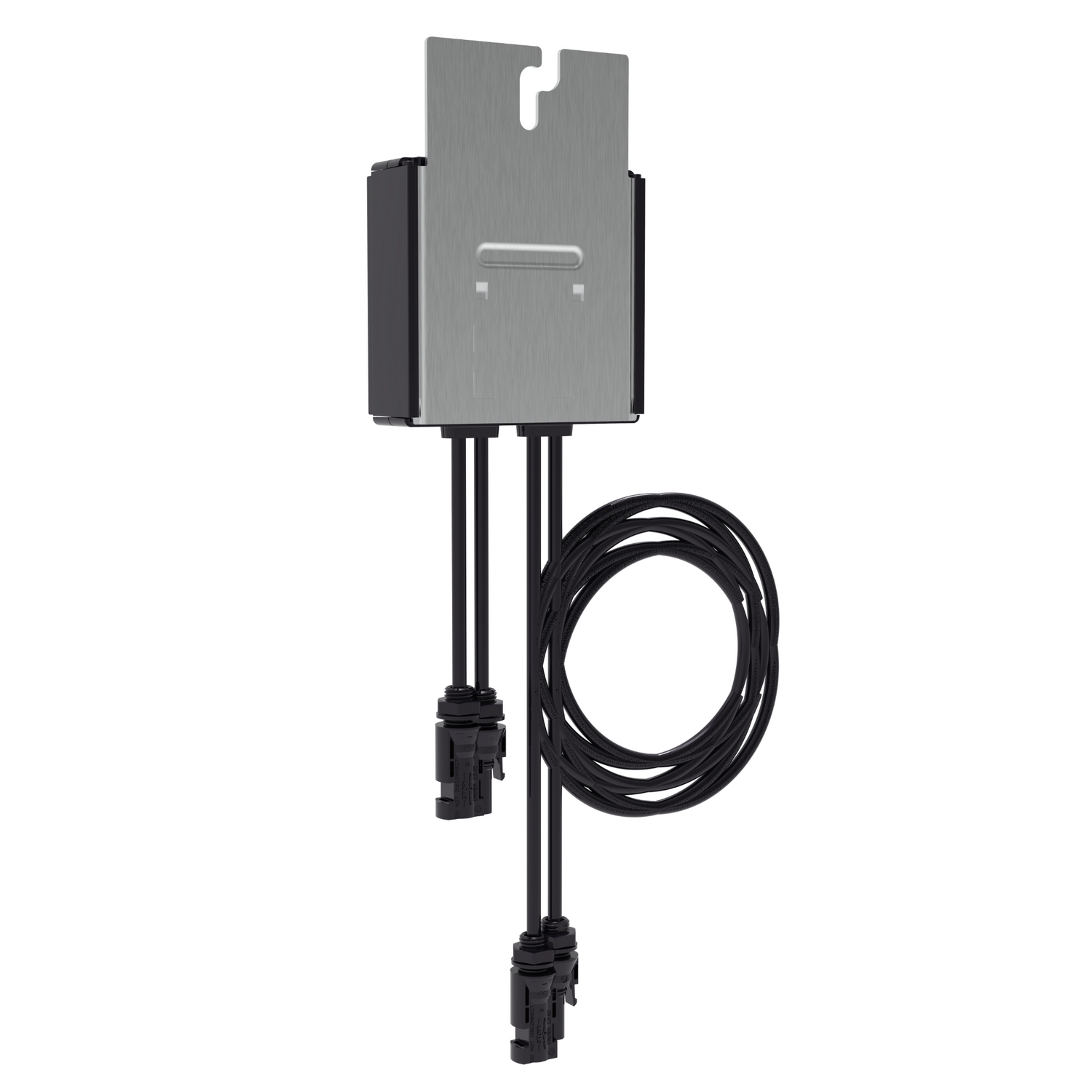

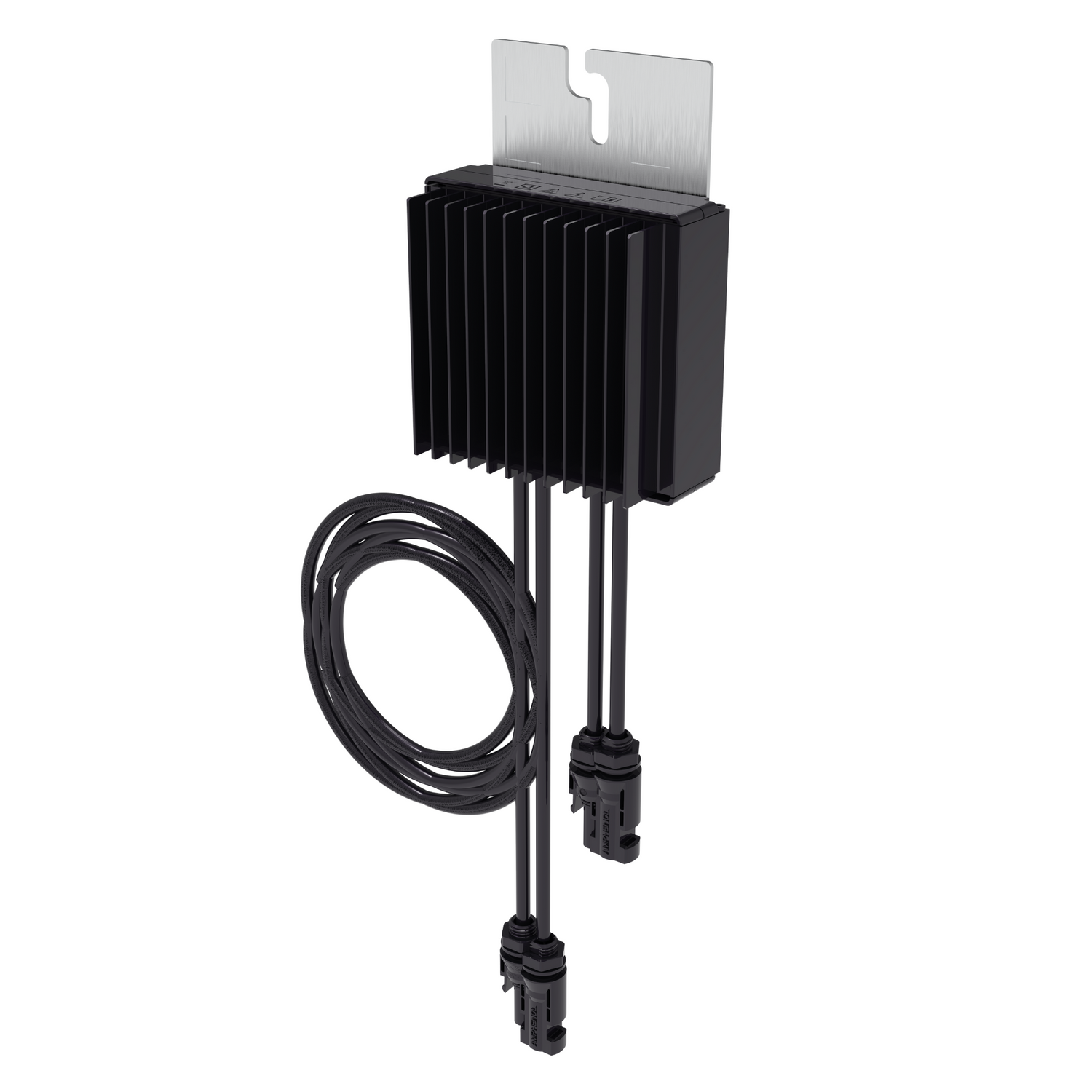

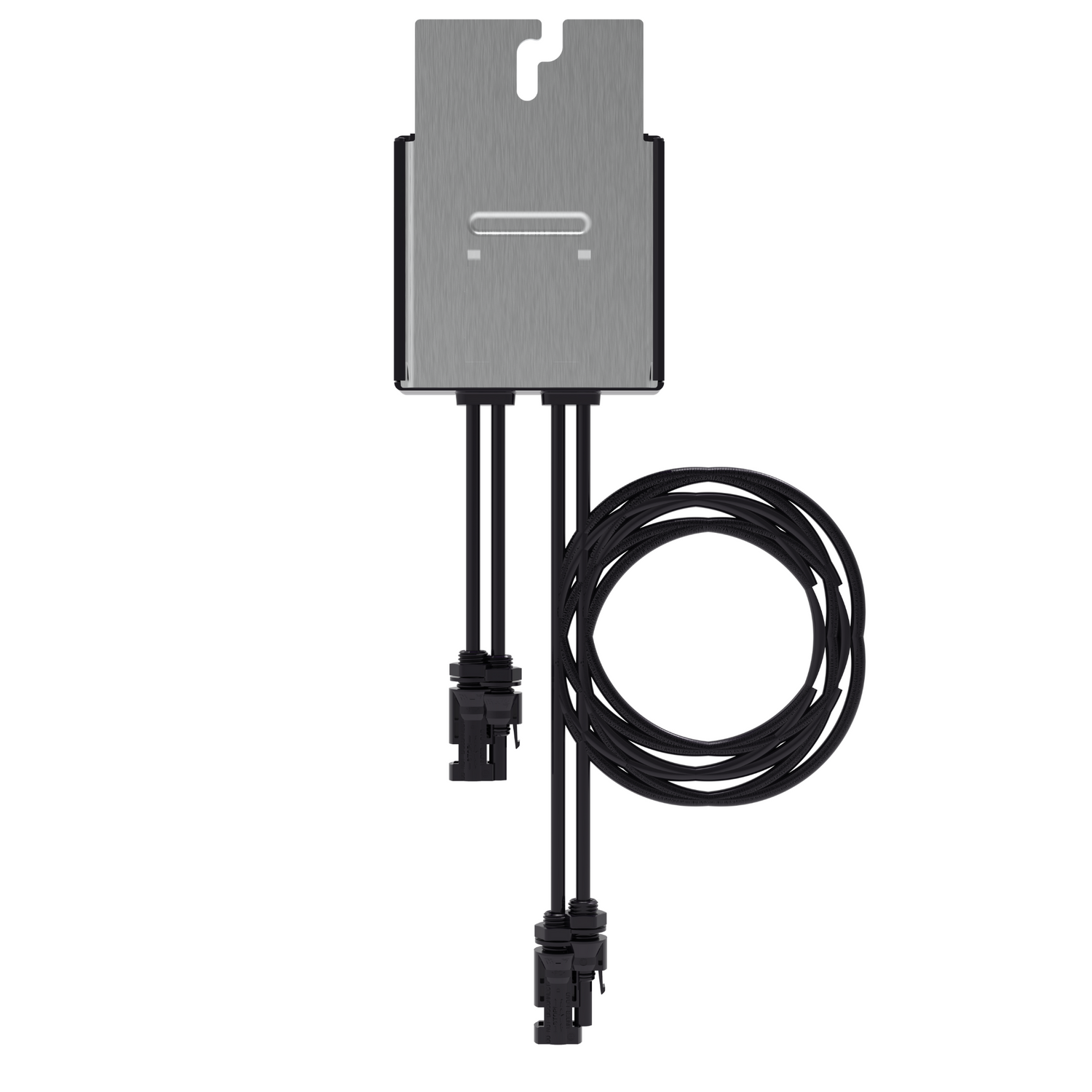

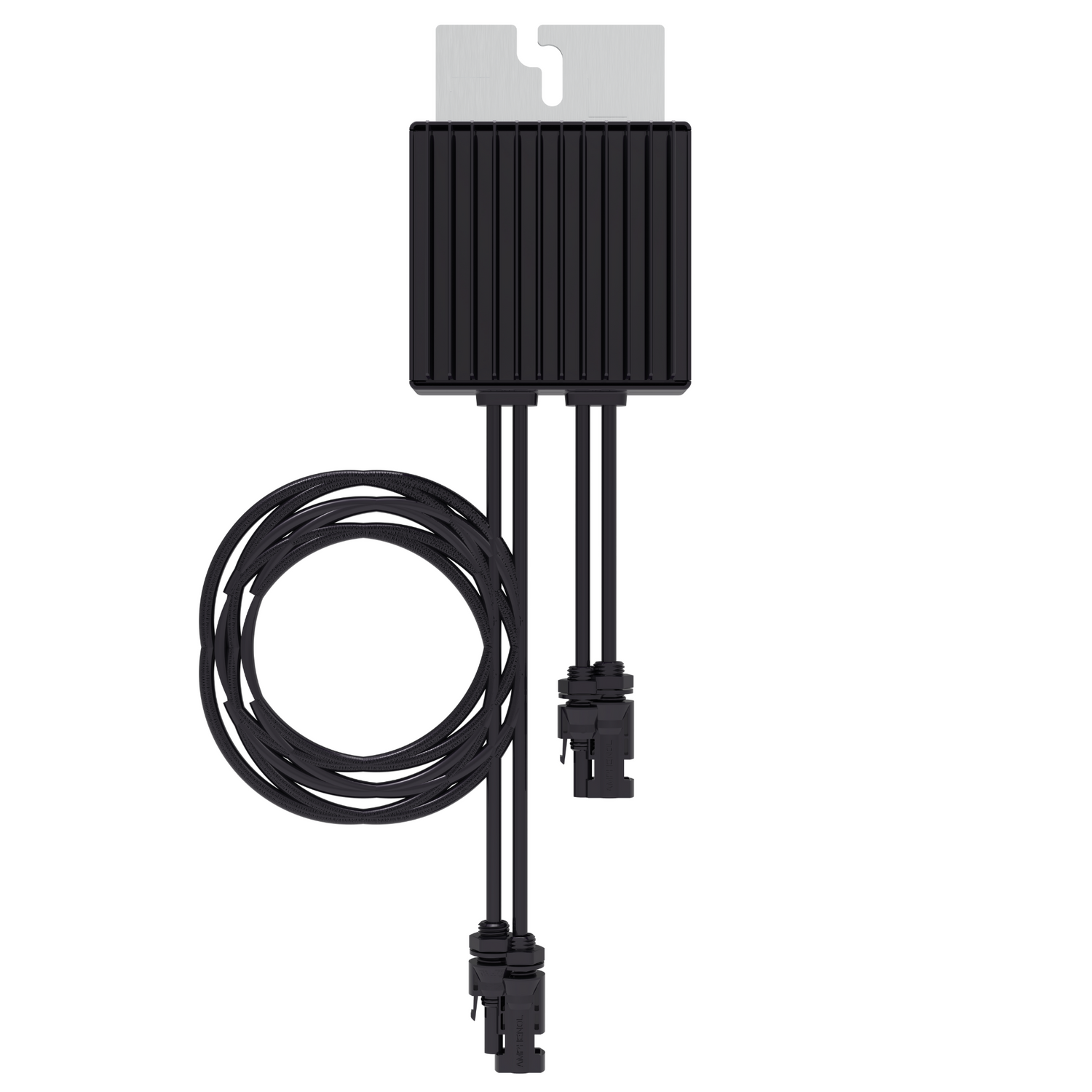

The Huawei Smart Optimizer MERC-1100W-P gets the maximum power out of the solar modules. Only 1 optimizer serves 2 solar modules. In this way, the Huawei Smart Optimizer can noticeably increase the efficiency of the system. To make this happen, advanced technology is integrated by the manufacturer. The Huawei Smart Optimizer measures 85 x 140 x 50 mm, weighs only 800 g, and is effortless to install.
The Huawei Smart Optimizer MERC-1100W-P has a rated input power of 1100 watts at an absolute input voltage of 125 volts. The possible voltage range is 12.5 to 105 volts. The Huawei Smart Optimizer handles an input current of 20 A and complies with overvoltage category II. The enormously high efficiency of 99.5% (weighted efficiency 99.0%) is impressive. This underlines the claim of the Huawei power optimizer. A key feature of the Huawei Smart Optimizer MERC-1100W-P is that it is a so-called one-fits-all element. It is compatible with various modules. Pairing with the inverter is done extremely quickly and easily.
Please refer to the compatibility matrix.
- Power1: 1100 W
- Overvoltage category: II
- Max. Efficiency: 99.5 %
- Weighted efficiency: 99.0 %.
- Protection class: IP68
Safe and reliable
Module accurate arc detection
More control
Physical view of the plant in less than 5 seconds
Huawei Smart Optimizer MERC-1100W-P - Technical Specifications
All facts and figures summarised for you in a compact and up-to-date form.
Huawei Smart Optimizer MERC-1100W-P - General Data
Dimensions (W x H x D): 85 x 140 x 50 mm (3.3 x 5.5 x 2.0 in.)
Weight (including cable): 0.8 kg
Installation part (optional): T-shaped bolt, PV module frame plate
Input connector: Stäubli MC4
Output connector: Stäubli MC4
Length of input cable4: 0.1m
Output cable length: 0.1m (+), 5.1m (-)
Operating temperature: -40 ～ +85 ℃
Humidity range: 0% RH～ 100% RH
Protection class: IP68
Warranty: 25 years
Huawei Smart Optimizer MERC-1100W-P - Input
Rated input power1: 1100 W
Absolute maximum input voltage : 125 V
MPPT operating voltage range: 12.5-105 V
Max. Input current: 20 A
Max. Efficiency: 99.5
Weighted efficiency: 99.0 %.
Overvoltage category: II
Huawei Smart Optimizer MERC-1100W-P - Output
Max. Output voltage: 80 V
Max. Output current: 20 A
Output bypass2Yes
Output voltage cut-off per optimizer3: 0 V
Output impedance at switch-off per optimizer : 1 k ohm ± 10%.
Long String Design (fully optimized)
Min. number of optimizers per string: 6
Max. Number of optimizers per string: 25
Max. Input power per string: 13,500 W
Huawei Smart Optimizer MERC-1100W-P - Standards Compliance
Safety: IEC62109-1 (Safety Class II)
RoHS: Yes
Huawei Smart Optimizer MERC-1100W-P - Inverter - Compatibility
Compatible products:
SUN2000-8/10/12/15/17/20KTL-M2
SUN2000-20/29,9/30/36/40KTL-M3
SUN2000-12/15/17/20/23/25KTL-M5
Huawei Smart Optimizer MERC-1100W-P
- Notes and explanations
1 The rated power of the module at STC must not exceed the "rated input DC power" of the power optimizer. Modules with a power tolerance of up to +5% are permissible.
2 The power optimiser is bypassed in a string connected to an inverter in operation when it is not working.
3 OVdc output of the power optimiser when the connection to the inverter is disconnected or the inverter is switched off.
4 Fits PV module in landscape and portrait installation.
