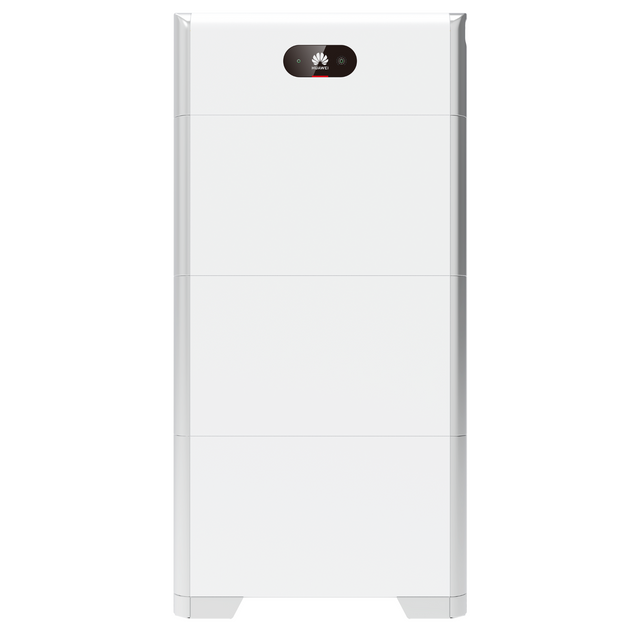

HUAWEI LUNA2000-15-S0 PV Storage Battery
HUAWEI LUNA2000-15-S0 PV Storage Battery este în așteptare și va fi expediat de îndată ce este din nou în stoc.
Nu s-a putut încărca disponibilitatea ridicării
Livrare
Livrare
Add some general information about your delivery and shipping policies.
HUAWEI LUNA2000-15-S0 PV Storage Battery
Descriere
Descriere
Buy Huawei LUNA2000-15-S0 PV Battery from HYTECH
Why you should choose a LUNA2000-15-S0
PV Battery from Huawei now.
The Huawei Luna Smart String Battery offers a modular solution tailored to your needs. With 5 kWh, 10 kWh, or 15 kWh and the ability to expand later, the Luna battery is ideal for responding to changing needs. In combination with the optional PV Optimizer, you get a powerful system with high efficiency.
Safe and reliable
- Modular design (5kWh)
- Flexible planning
- Expandable up to 30 kWh
- Perfect compatibility
- Can be combined with single-phase and three-phase Huawei inverters
- Lithium iron phosphate cell
- Multi-level safety concept
Simple installation
- Power module = 12 kg
- Battery module = 50 kg
- Quick commissioning
- Recognition via APP
- More energy
- 100% depth of discharge
- Load optimization
Huawei Luna advantages
- Modular design with up to 15kWh
- Parallel operation with 2 systems, up to 30kWh
- Can be retrofitted at any time, plug and play
- DC system, reduces losses
- Real 15kWh, DOD of 100%
- Lithium iron phosphate technology
- For indoor and outdoor installation
Huawei LUNA2000-15-S0 - Technical Specifications
All facts and figures are summarised for you in a compact and up-to-date form at.
Huawei LUNA2000-15-S0 - General Specifications
Dimensions (W*D*H): 670 * 150 * 1320 mm
Weight (incl. stand): 163.8kg
Power module Dimensions (W*D*TH): 670 * 150 * 240 mm
Power module Weight: 12 kg
Battery module Dimensions (W*D*H): 670 * 150 * 360 mm
Battery module Weight: 50 kg
Installation: Stand (standard), Wall mounting (optional)
Operating temperature range: -10°C~ +55°C1
Rel. Operating humidity: 5%~95%
Cooling: Convection cooling
Protection class: IP 65
Noise emission: < 29 dB
Cell technology: Lithium iron phosphate (LiFePO4)
Warranty: 10 years2
Scalability: Parallel operation of max. 2 batteries
Huawei LUNA2000-15-S0 - Performance
Power module: LUNA2000-5KW-C0
Number of power modules: 1
Battery module: LUNA2000-5E0
Battery module capacity: 5 kWh
Number of battery modules: 3
Usable battery energy 15 kWh
Nominal discharge power: 5 kW
Maximum discharge power: 7 kW, 10 s
Nominal voltage (1-phase WR/L1): 360 V
Operating voltage range (1-phase WR/L1): 350 - 560 V
Nominal voltage (3-phase WR - M1): 600 V
Operating voltage range (3-phase WR/M1): 600 - 980 V
Huawei LUNA2000-15-S0 - Compatible inverters
SUN2000L-2/3/3.68/4/4.6/5KTL , SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0 ,
SUN2000-3/4/5/6/8/10KTL-M1
Huawei LUNA2000-15-S0 - Communication
Display: SOC Status - LED, Status - LED
Communication: RS485, CAN (only for parallel operation)
Huawei LUNA2000-15-S0 - Standards and Safety
Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3
Huawei LUNA2000-15-S0 - Product Names
1x LUNA2000-10-S0 consists of:
1x LUNA2000-5KW-C0 (power module)
3x LUNA2000-5-E0 (battery module)
Huawei LUNA2000-15-S0 - Notes and explanations
1 Charge/discharge power derating and heating if necessary at temperatures from -10°C to +5°C & +45°C to +55°C. Recommended operating temperature +15°C to +30°C.
2 Please refer to the valid warranty conditions for details.
