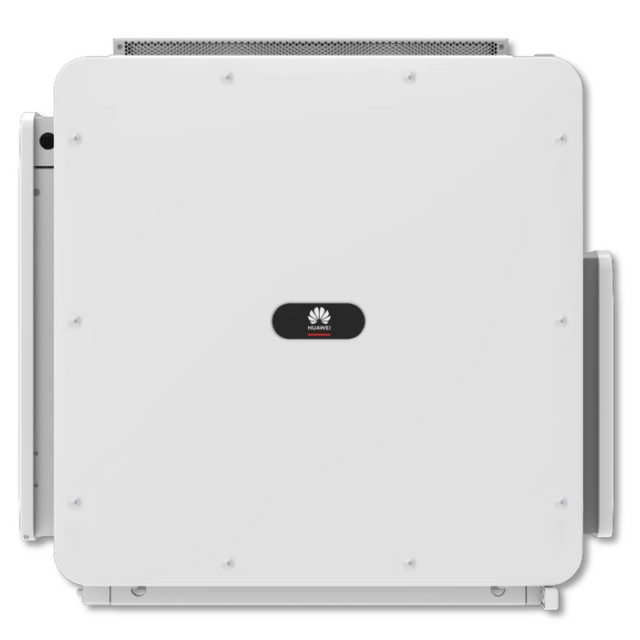

Buy Huawei FusionSolar LUNA2000-200KTL-P0 Smart PCS at HYTECH
Why you should choose now a LUNA2000-200KTL-P0 Smart PCS
from Huawei.
from Huawei.
More energy
Maximum efficiency 99%
Safe & Reliable
Protection class IP66
Optimal investment
Modular design
Simple communication
Communication via Ethernet
Huawei FusionSolar LUNA2000-200KTL-P0 Smart PCS - Technical Specifications
All facts and figures summarised for you in a current and compact form.
Efficiency |
|
| Max. Efficiency | 99.0% |
| European efficiency | 98.8% |
Input (DC)
|
|
| Norm. DC voltage | 1,200 V |
| Max. DC voltage | 1,500 V |
| DC Operating voltage range | 1,180 V ~ 1,500 V |
| Max. Input current | 207.6 A |
| Inputs | 1 |
Output (AC)
|
|
| Nominal active power | 200,000 W @40°C |
| Max. Apparent power | 240,000 VA |
| Max. Active power (cosφ=1) | 240,000 W |
| Rated voltage | 800 V |
| Mains frequency | 50 Hz / 60 Hz |
| Max. Output current | 173.2 A |
| Adjustable power factor | -1 ... +1 |
| Distortion factor (THD) | ＜3% |
Protective devices
|
|
| Island network detection | Yes |
| AC overcurrent protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation monitoring | Yes |
| Earth fault protection | Yes |
| Residual current monitoring | Yes |
| DC overvoltage protection | Type II |
| AC overvoltage protection | Type II |
Communication
|
|
| Display | LED display, WLAN + APP |
| USB | Yes |
| RS485 | Yes |
| Ethernet | Yes |
General data
|
|
| Dimensions (WxHxD) | 875 x 820 x 365 mm |
| Weight (with mounting bracket) | < 90 kg |
| Operating temperature range | -25°C ~ 60°C |
| Cooling principle | Active cooling |
| Operating height | 4,000 m |
| Relative humidity | 0 ~ 100% |
| DC connections | Waterproof connection + OT/DT terminal |
| AC connections | Waterproof connection + OT/DT terminal |
| Protection class | IP66 |
| Topology | Transformerless |
(1) - More detailed AC power of STS, please refer to the de-rating curve.
