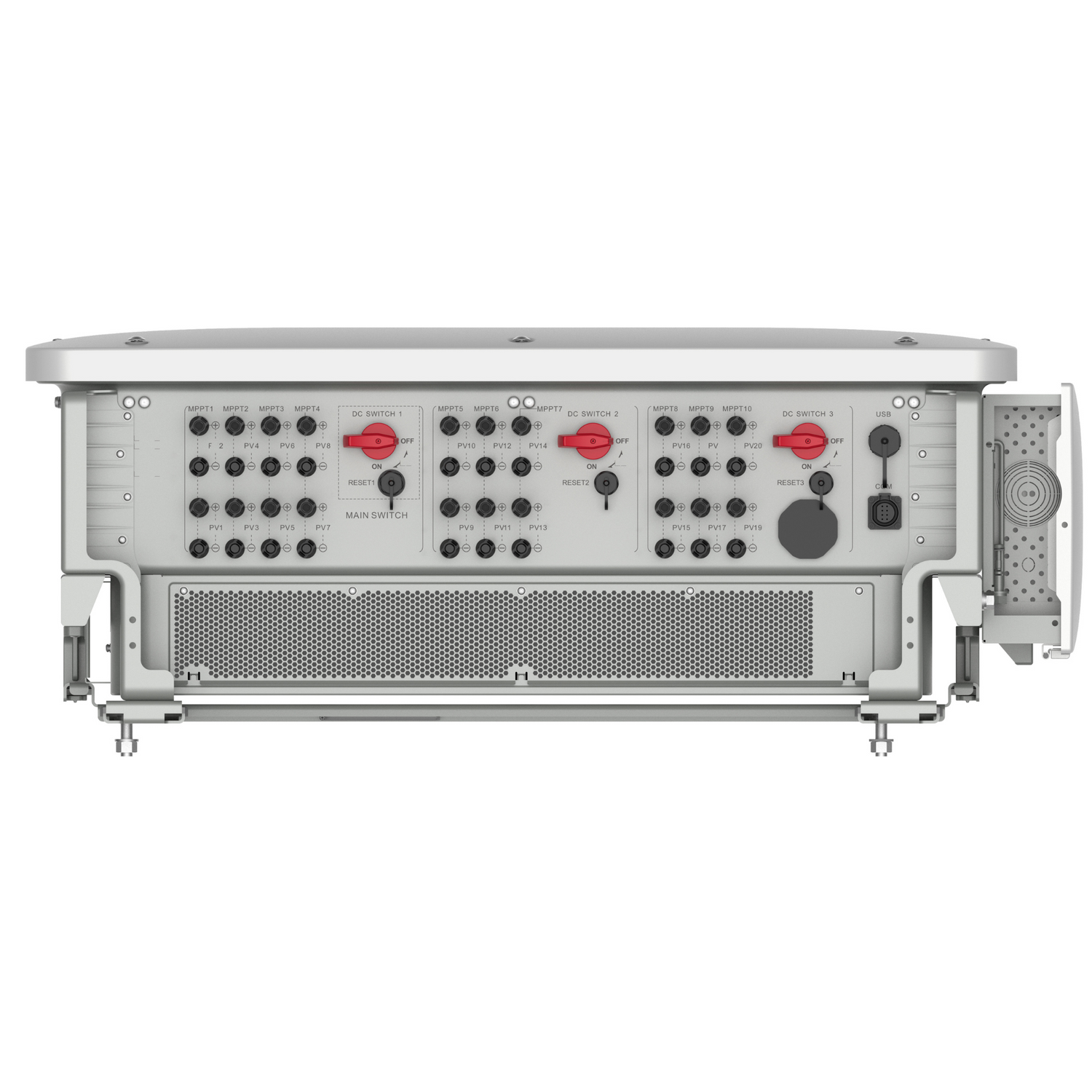

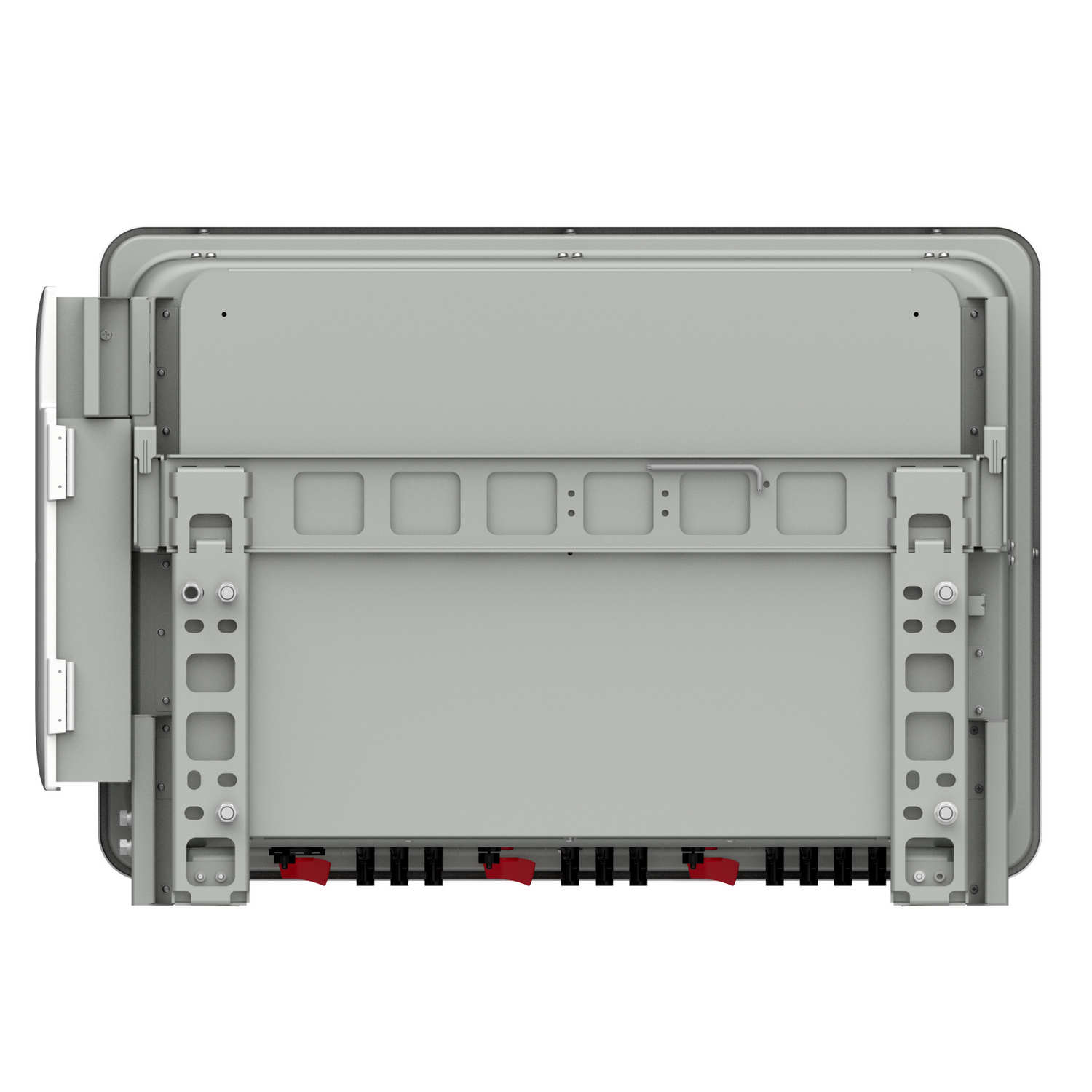

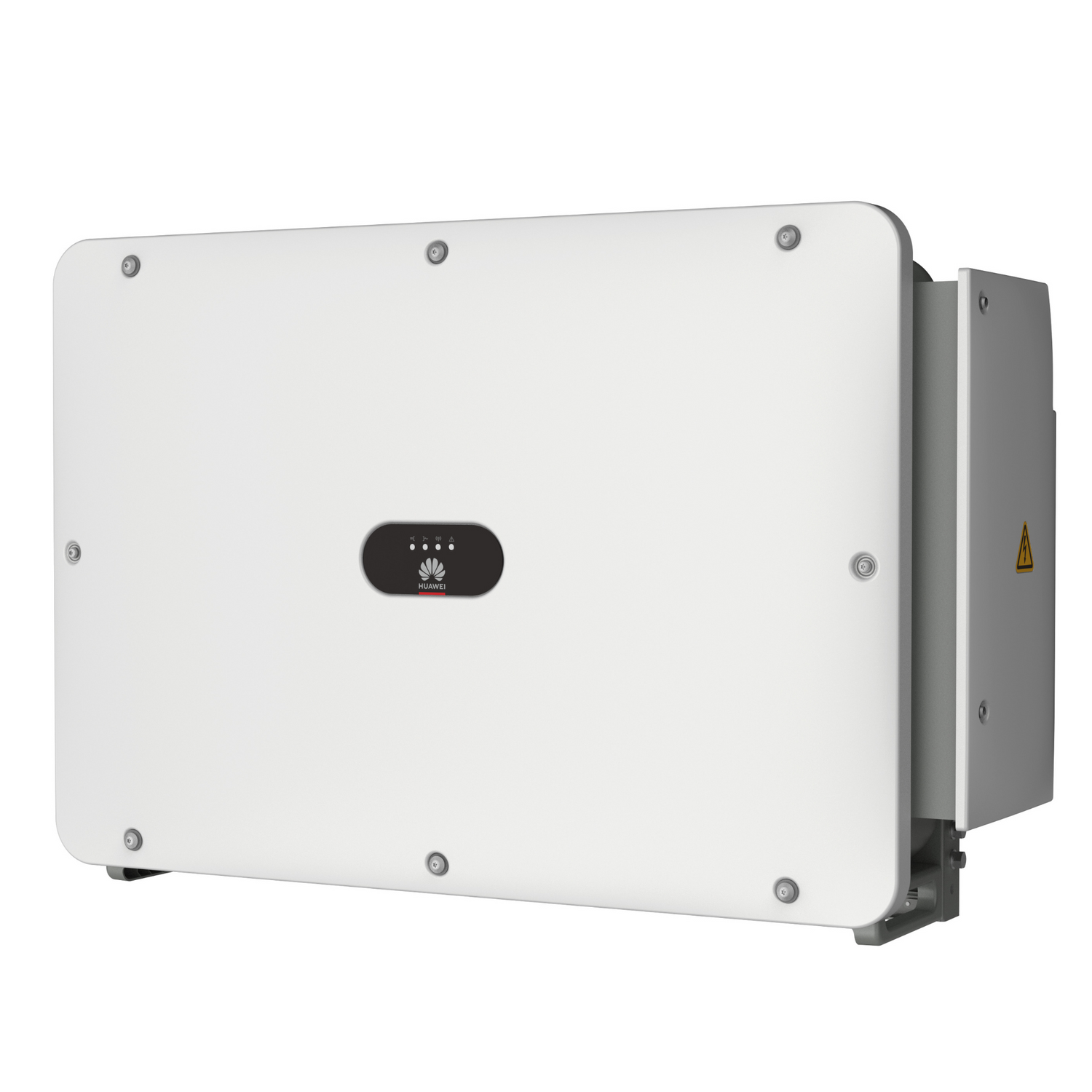

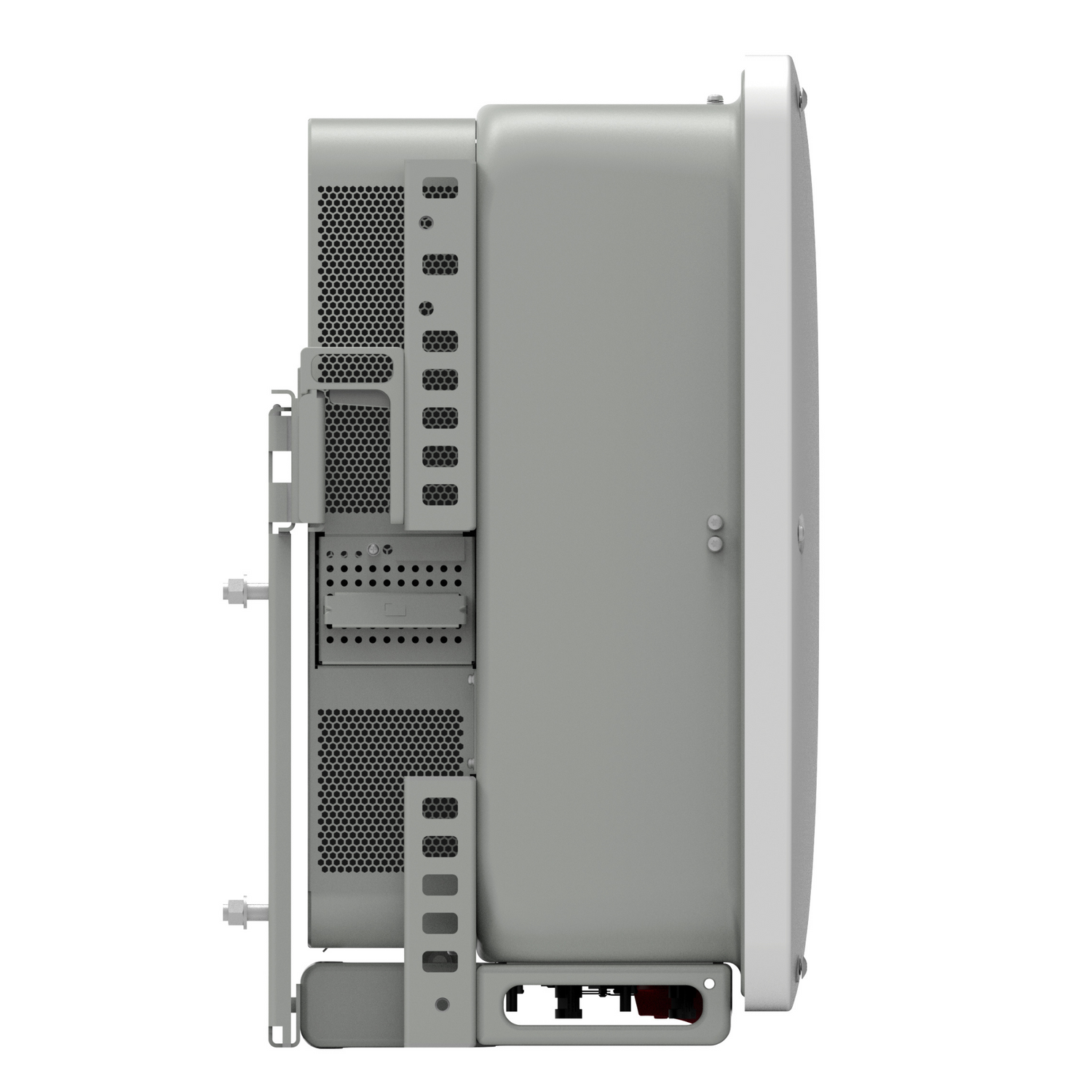

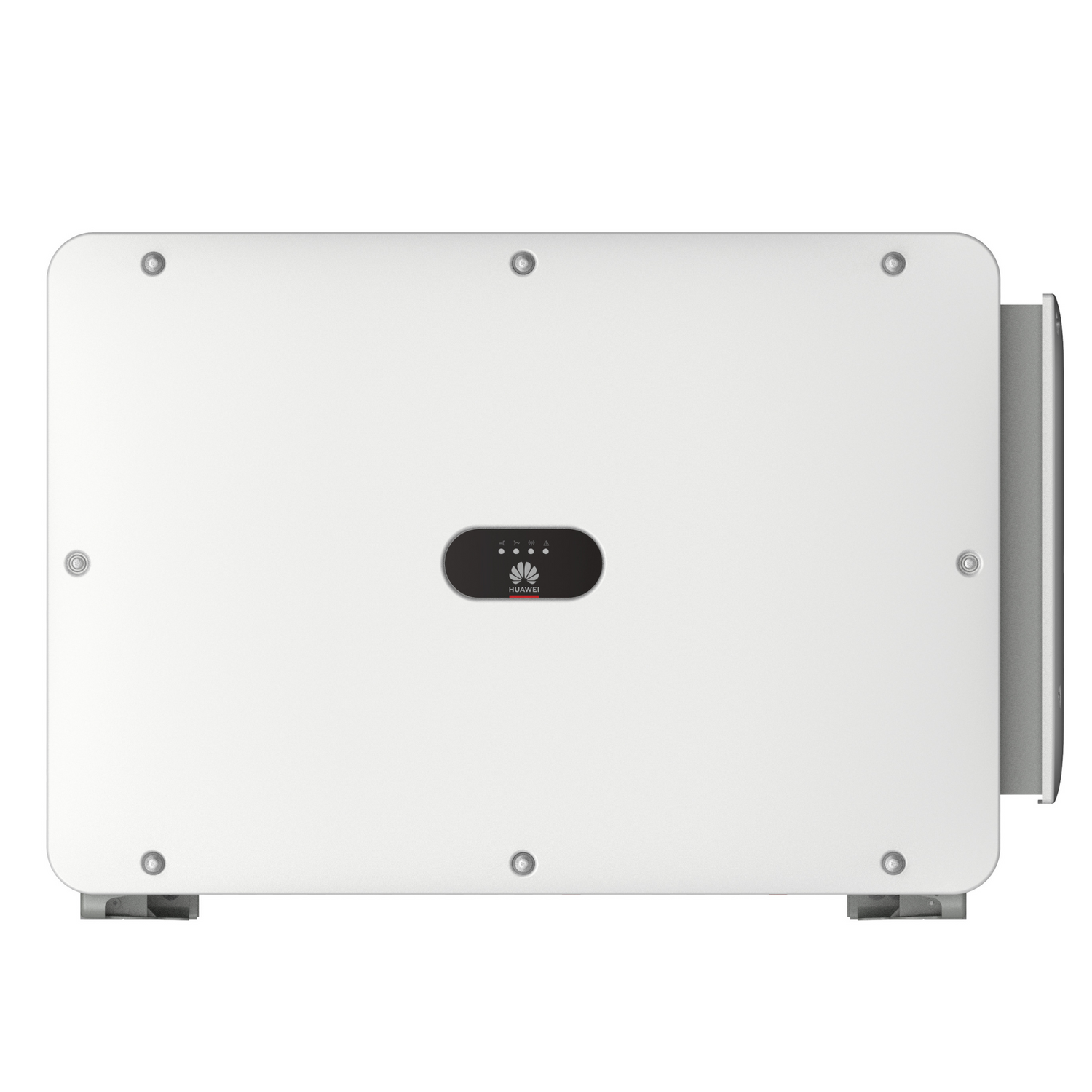

HUAWEI SUN2000-115KTL-M2

Loghează-te pentru a vizualiza prețuri 20.292,37 lei


Livrare

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

HUAWEI SUN2000-115KTL-M2 Inverter buy at HYTECH

Why you should choose a HUAWEI SUN2000-115KTL-M2
inverter from Huawei.

The Huawei HUAWEI SUN2000-115KTL-M2 inverter is an uncompromisingly powerful module for large-scale solar power systems. It converts the generated electricity from sunlight into grid-standard alternating current. This is available on site or for feeding into the grid. The dimensions of 1035 x 700 x 365 mm are compact for an inverter of this power class, the weight is 93 kg.Installation is therefore best done in pairs or threes. DC connection to the PV system is via plug-in connections, so commissioning is completed quickly. The Huawei FusionSolar app helps with the setup. The HUAWEI SUN2000-115KTL-M2 inverter also connects effortlessly with smart components. It supports RS485 communication, for example, with the smart logger. The data can be viewed via the FusionSolar management system.

In summary, the HUAWEI SUN2000-115KTL-M2 inverter offers numerous advantages, among other things, the module already has overvoltage protection (type 2 for DC and AC). In addition, ten independent MPP trackers are installed at the factory. Another pleasant feature is the low noise level thanks to modern Smart Air Cooling. The power of 115,000 watts meets the needs of a large system, the MPPT voltage range is between 200 and 1000 volts. The maximum efficiency reaches an amazing 98.8%, the European efficiency 98.6%. All this ensures a high yield in operation.

HUAWEI SUN2000-115KTL-M2 Advantages

  • 3-phase inverter with 125,000VA power
  • 10 independent MPP trackers
  • 20 DC connections
  • Efficiency up to 98.6%
  • Communication via RS485 / Ethernet & 2G/3G/4G*
  • Free system monitoring with FusionSolar
  • RS485 for Smart Power Sensor & SmartLogger 3000
  • Smart IV Curve
  • AC MBUS communication
  • Smart String Level Disconnector
  • Fuseless design - no fuses
  • Integrated AC and DC overvoltage protection TYPE II
  • Integrated PID recovery
  • Smart Air Cooling
  • Protection class IP66
  • Installation via FusionSolarApp

Higher Yield - Huawei Inverter

Higher yield

Max. Efficiency 98.8%

Higher Yield - Huawei Inverter

Maximum flexibility

10 MPP tracker

Higher Yield - Huawei Inverter

Low effort

Fuse-free design

Higher Yield - Huawei Inverter

Supports

Smart I-V Curve Diagnosis

Higher Yield - Huawei Inverter

Secure

IP66 protection

Higher Yield - Huawei Inverter

Smart

MBUS supports

Higher Yield - Huawei Inverter

Reliable

Type II arrester for DC & AC

Higher Yield - Huawei Inverter

Supports

Smart String Level Disconnector

HUAWEI SUN2000-115KTL-M2 - Technical Specifications

All facts and figures are summarised for you in a compact and up-to-date form at.

HUAWEI SUN2000-115KTL-M2 - General Data

Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshöhe: max. 4.000 m
Kühlung: Smart Air Cooling
Anzeige: Status LED´s
Kommunikation: 4G / 3G / 2G via Smart Dongle – 4G (Optional), MBUS
Gewicht (mit Montageplatte): 93 Kg
Abmessungen: 1.035 x 700 x 365 mm
Schutzart: IP66
Topologie: Transformatorlos
Energieverbrauch nachts: < 3.5 W

HUAWEI SUN2000-115KTL-M2 - Input DC

Max. Input voltage1: 1,100 V
MPPT operating voltage range2: 200 V ~ 1,000 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. Input current per MPPT: 30 A
Max. Short circuit current: 40 A
Number of MPP trackers: 10
Number of inputs: 20

HUAWEI SUN2000-115KTL-M2 - Output AC

Netzanschluss: Dreiphasig
Nennleistung: 115.000 W
Maximale Scheinleistung: 125.000 VA
Nennausgangsspannung: 400 V / 480 V, 3W+(N)+PE
AC – Netzfrequenz: 50 Hz / 60 Hz
Maximaler Ausgangsstrom: 182.3 A @400 V, 151.9 A @480 V
Einstellbarer Leistungsfaktor: 0.8 kap. … 0.8 ind.
Klirrfaktor (THD): < 3%

HUAWEI SUN2000-115KTL-M2 - Efficiency

Max. Efficiency: 98.6% @400 V, 98.8% @480 V
European Efficiency: 98.4% @400 V, 98.6% @480 V

HUAWEI SUN2000-115KTL-M2 - Protection devices

DC load break switch: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage arrester: Type II
AC overvoltage arrester: Type II
Insulation monitoring: Yes
Fault current monitoring: Yes

HUAWEI SUN2000-115KTL-M2 - Standards and Safety

EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 61727, IEC 60068, IEC 61683

HUAWEI SUN2000-115KTL-M2 - Power supply conditions

VDE-AR-N4105, VDE 4110, EN 50549-1, EN 50549-2, RD 661, RD 1699, C10/11

Further information on conformity to standards is available on request.

HUAWEI SUN2000-115KTL-M2 - included in the scope of delivery

PV connector
Bluetooth dongle (for commissioning via FusionSolar app)
Bracket

HUAWEI SUN2000-115KTL-M2 - Notes and explanations

1 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.

2 Any DC input voltage above the operating voltage range can lead to faulty operation-.

* via 4G dongle (optional)

** works with Smartlogger3000A03 (transformer required)
