HUAWEI

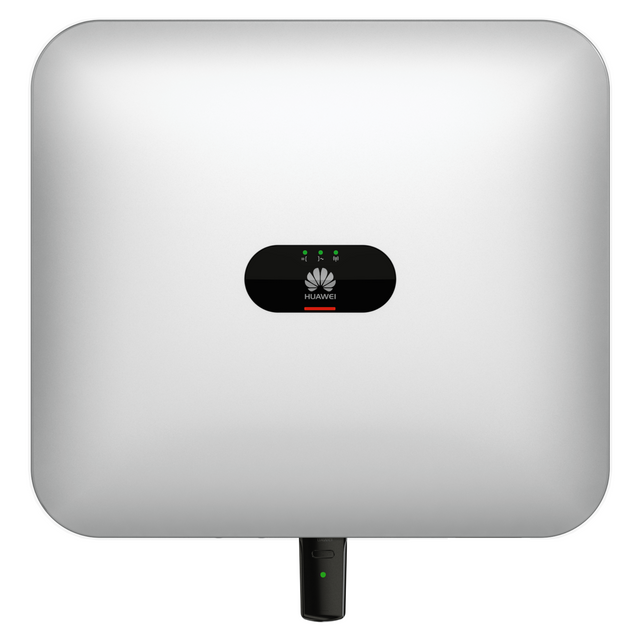

HUAWEI SUN2000-10KTL-M1

Loghează-te pentru a vizualiza prețuri 6.705,93 lei

Livrare

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

Huawei SUN2000-10KTL-M1 Inverter High Current Version Buy Inverter at HYTECH

Why you should now choose a SUN2000-10KTL-M1
inverter in the High Current version from Huawei.

The Huawei SUN2000-10KTL-M1 combines efficiency with ease of use. As an indispensable component of the PV system, the inverter is designed to convert direct current from the solar cells into alternating current. In this form, it can be used or fed into the grid.

  • 3-phase inverter with 11,000VA power output
  • 2 independent MPP trackers
  • 1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
  • Efficiency up to 98.6%
  • Compatible with module optimizer
  • Communication via WLAN / Ethernet & 4G/LTE*
  • Free system monitoring with FusionSolar
  • RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
  • Integrated AC and DC overvoltage protection TYPE II
  • Integrated PID recovery
  • Convection cooling
  • Protection class IP65

Higher Yield - Huawei Inverter

Higher yield

Max. Efficiency 98.6%
Up to 30% more energy with Optimizer

Higher Yield - Huawei Inverter

Future-proof

Plug & Play battery interface

Higher Yield - Huawei Inverter

Simple and easy

only 17 Kg

Higher Yield - Huawei Inverter

Safe and reliable

Arc detection

Huawei SUN2000-10KTL-M1 High Current Version - Technical Specifications

All the latest facts and figures
summarized compactly for you.

Huawei SUN2000-10KTL-M1 High Current Version - General Data

Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshöhe: 0 – 4.000 m (Derating > 2.000 m)
Kühlung: Konvektionskühlung
Anzeige: LED – Anzeige
Kommunikation: RS485, WLAN, Ethernet über Smart Dongle-WLAN-FE; 4G/3G/2G über Smart Dongle 4G (optional)
Gewicht (inkl. Befestigungswinkel): 17 Kg
Abmessungen (inkl. Befestigungswinkel): 525 x 470 x 146.5 mm
Schutzart: IP65
Energieverbrauch nachts: < 5,5 W (<10 W, wenn die PID-Wiederherstellungsfunktion aktiviert ist)

Huawei SUN2000-10KTL-M1 High Current Version - Input (DC)

Recommended maximum PV power1: 15.000 Wp
Max. Input voltage2: 1.100 V
Operating voltage range3 : 140 V ~ 980 V
Starting voltage : 200 V
Rated input voltage : 600 V
Max. Input current per MPPT: 13.5 A
Max. Short circuit current: 19.5 A
Number of MPP trackers: 2
Max. Number of inputs per MPPT: 1

Huawei SUN2000-10KTL-M1 High Current Version - Input (DC Battery)

Compatible battery: HUAWEI Smart String ESS 5kWh - 30kWh
Operating voltage range: 600 V ~ 980 V
Maximum operating current: 16.7 A
Maximum charging power: 10,000 W
Maximum discharging power: 10,000 W

Huawei SUN2000-10KTL-M1 High Current Version - Output (On Grid)

Mains connection: 3-phasih
Rated power: 10,000 W
Maximum apparent power: 11,000 VA
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
AC mains frequency: 50 Hz / 60 Hz
Maximum output current: 16.9 A
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%.

Huawei SUN2000-10KTL-M1 High Current Version - Output (Backup Power via Backup Box-B1)

Maximum apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V
Maximum output current: 15 A
Adjustable power factor: 0.8 cap. ... 0.8 ind.

Huawei SUN2000-10KTL-M1 High Current Version - Protection and function

DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Fault current monitoring: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
Arc detection: Yes
Inputs for ripple control receivers: Yes
Integrated PID recovery: Yes
Battery charging from mains possible: Yes

Huawei SUN2000-10KTL-M1 High Current Version - Module Optimiser

DC MBUS compatible optimizer: SUN2000-450W-P
SUN2000-450W-P2
SUN2000-600W-P

Huawei SUN2000-10KTL-M1 High Current Version - Standards Compliance (others available on request)

Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Mains connection standards: G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR Erzeuger Typ A, NRS 097-2-1, IEC61727, IEC62116, DEWA

Huawei SUN2000-10KTL-M1 High Current Version - included in delivery

PV Connectors
Battery connectors
AC connectors
Signal cable connector
Bracket
WLAN-FE-Dongle

Huawei SUN2000-10KTL-M1 High Current Version - Notes and Explanations

1 The maximum PV input power of the inverter is 20,000Wp when long strings are designed and fully connected to the SUN2000-450-P power optimizers.

2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.

3 Any DC input voltage above the operating voltage range may cause faulty operation.
